How to Use EPSON Printer Service Utility 2

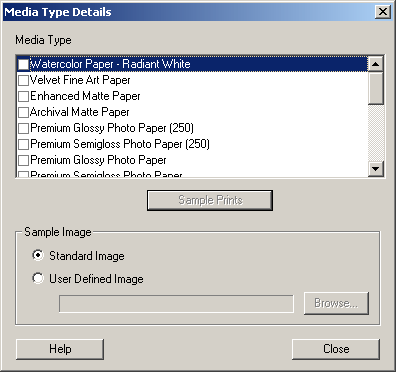

Media Type Detail

Select the check boxes next to the EPSON media type you want to try with their settings.

Note:

The media are listed in order of ink consumption, greatest to least.

To use a specific image as Sample Prints to choose the most appropriate media, click the radio button next to User Defined Image, then click Browse to find the image.

Note:

The available size for User Defined Image is within 4060 x 1190 pixels and 24 bit BMP file format.

To use a standard image, leave the radio button as it is.

Click Sample Prints. Compare the results and determine the most similar media.

Write down the media type you determined.

Click Close and enter in the text box in the original menu the media type you wrote down.
