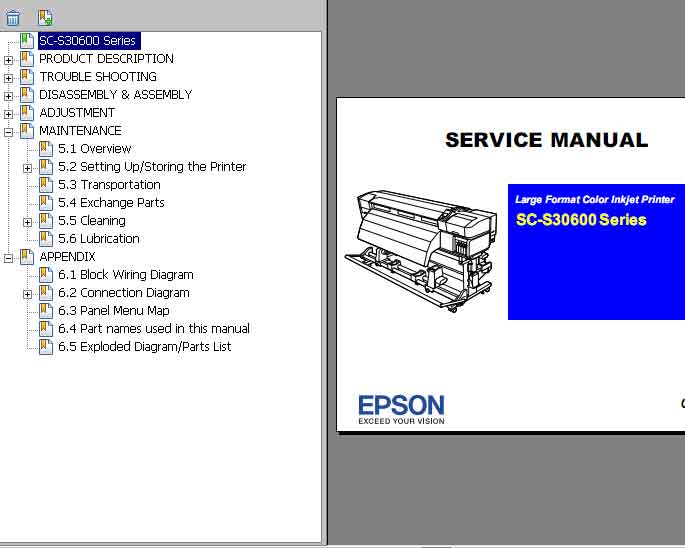

This Epson Large Format Color Inkjet Printer SC-S30600 Series Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.
CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product
CHAPTER 2. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.
CHAPTER 3. DISASSEMBLY / ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product
CHAPTER 4. ADJUSTMENT
Provides Epson-approved methods for adjustment.
CHAPTER 5. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.
CHAPTER 6. APPENDIX
Provides the following additional information for reference:
- Wiring Diagram
- Panel Menu Maps
FORMAT: High resolution PDF document!
