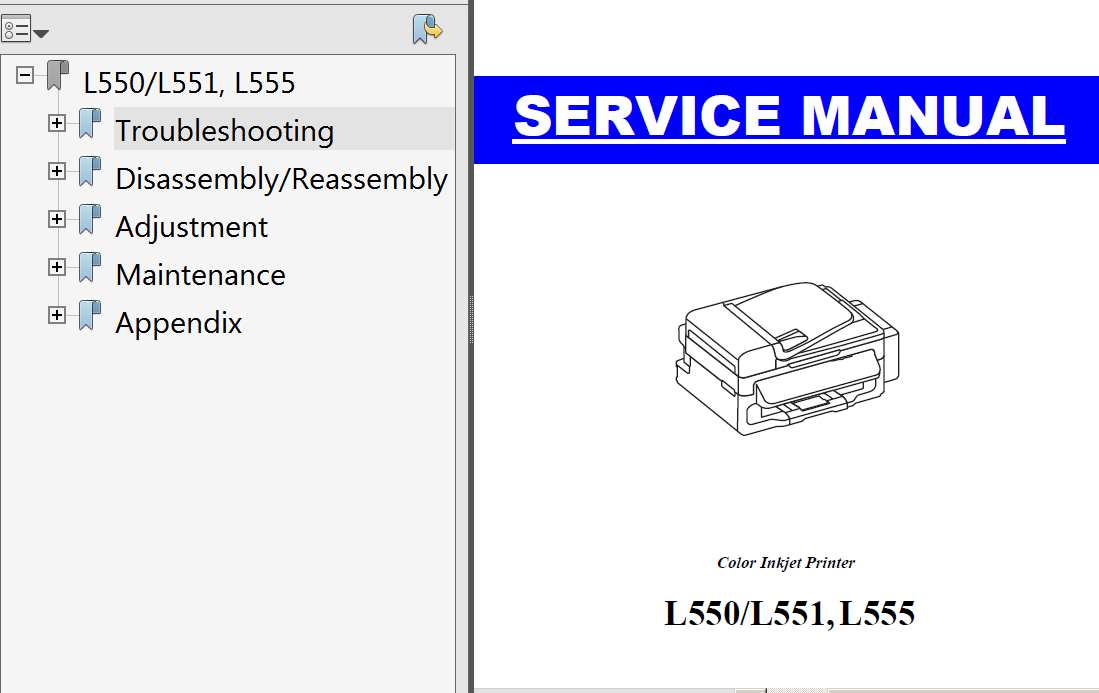

This Epson L550 Series, L551, L555 Series Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.
CHAPTER 1. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.
CHAPTER 2. DISASSEMBLY / REASSEMBLY
Describes the disassembly/reassembly procedures for main parts/units of the product, and provides the standard operation time for servicing the product.
CHAPTER 3. ADJUSTMENT
Describes the required adjustments for servicing the product.
CHAPTER 4. MAINTENANCE
Describes maintenance items and procedures for servicing the product.
CHAPTER 5. APPENDIX
Provides the following additional information for reference:
• Connector Diagram
• Points to be checked before packing the printer
• Protection for transportation
FORMAT: High resolution PDF document!
Zip archive: 17 975 kB
Order and download On-Line!
This printer models L455, L466, L110, L111, L210, L211, L300, L301, L350, L351, L355, L358 are supported by WIC reset utility and can ber reset the waste ink pad counter by WIC Reset Utility.
|
