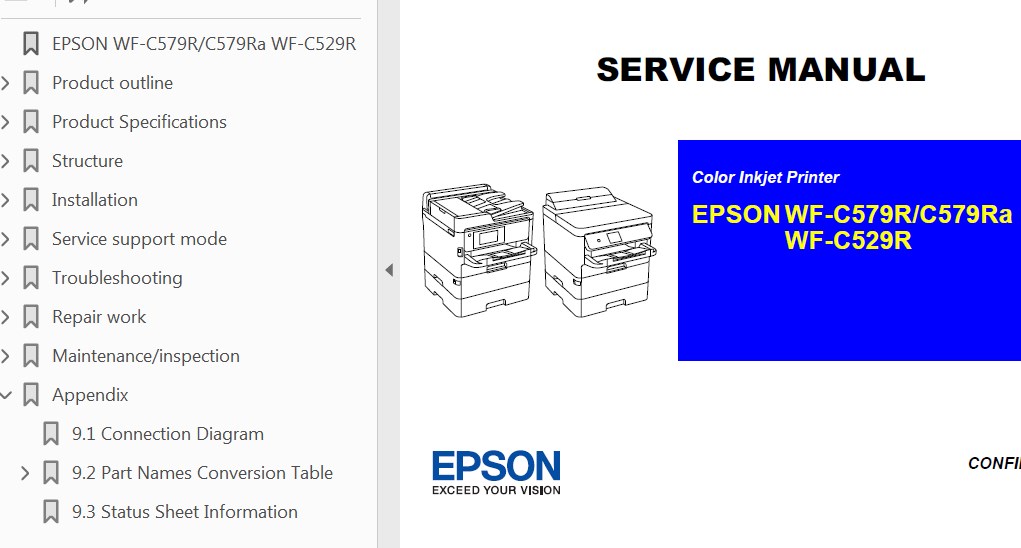

This Epson WF-C529R, WF-C579R, WF-C579Ra Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.
This manual, consists of the following chapters, is intended for repair service personnel and includes information
necessary for properly performing maintenance and servicing the product.
CHAPTER 1. PRODUCT OUTLINE
CHAPTER 2. PRODUCT SPECIFICATIONS
CHAPTER 3. STRUCTURE
CHAPTER 4. INSTALLATION
CHAPTER 5. SERVICE SUPPORT MODE
CHAPTER 6. TROUBLESHOOTING
CHAPTER 7. REPAIR WORK
CHAPTER 8. MAINTENANCE/INSPECTION
APPENDIX
Provides the following additional information for reference:
- Connection Diagram
- Part Names Conversion Table
- Status Sheet Information
FORMAT: High resolution PDF document - 719 pages!
