Epson T12, T13, T22, T25, TX120, TX121, TX123, TX125, TX129, N10, N11, NX125, NX127, ME10, ME32, ME33, ME320, ME330, S22, SX125 printers Service Manual New!

Epson T12, T13, T22, T25, TX120, TX121, TX123, TX125, TX129, N10, N11, NX125, NX127, ME10, ME32, ME33, ME320, ME330, S22, SX125 printers Service Manual New! [SM_T13]	$9.99

Click to enlarge

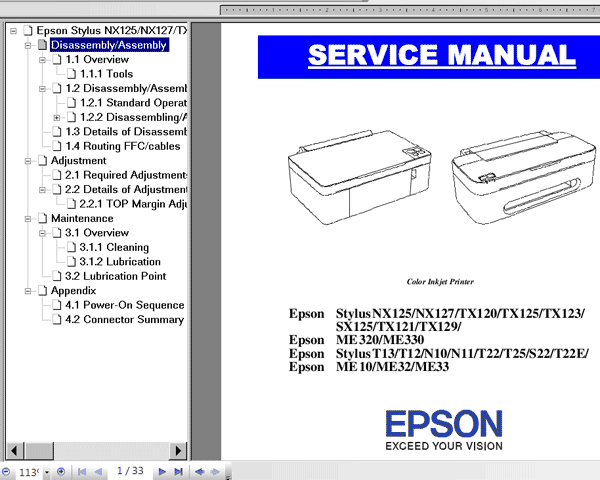

This Epson T12, T13, T22, T25, TX120, TX121, TX123, TX125, TX129, N10, N11, NX125, NX127, ME10, ME32, ME33, ME320, ME330, S22, SX125 Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.

MANUAL CONTENT:

Chapter 1 Disassembly/Assembly
1.1 Overview
1.1.1 Tools
1.2 Disassembly/Assembly Procedures
1.2.1 Standard Operation Time for servicing the product (TBD)
1.2.2 Disassembling/Assembling Flowchart
1.2.2.1 Housing Part
1.2.2.2 Printer Mechanism Part
1.3 Details of Disassembling/Assembling by Parts/Unit
1.4 Routing FFC/cables

Chapter 2 Adjustment
2.1 Required Adjustments (TBD)
2.2 Details of Adjustments
2.2.1 TOP Margin Adjustment

Chapter 3 Maintenance
3.1 Overview
3.1.1 Cleaning
3.1.2 Lubrication
3.2 Lubrication Point

Chapter 4 Appendix
4.1 Power-On Sequence
4.2 Connector Summary

FORMAT: High resolution PDF document!
Zip archive: 13 444 kB

Choose the way You want to get this document:
I want to:

3 STEPS to download files you need:

	Step 1 ADD TO CART	Step 2 CHECKOUT Select payment method.	Step 3 Confirm the order.
