CANON BJ-W7200, W7250 printer Service Manual and Full Circuit Diagrams

$14.99

Click to enlarge

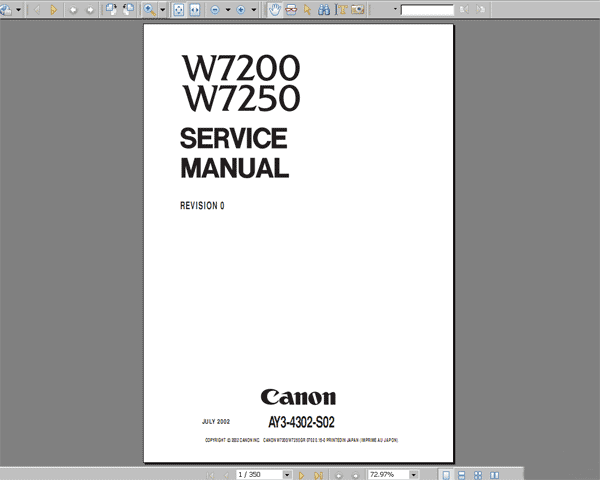

Canon W7200, W7250 printer Service Manual

This manual is divided into five parts containing the information required for servicing the W7200/W7250 printer.

Part 1: Safety and Precautions
This part contains information on how to service the unit safety. It is very important, and must be read.

Part 2: Product Specifications
This part outlines the product and its specifications.

Part 3: Operating Instructions
This part explains how to operate the unit properly, how it is installed, and how to use the service mode.

Part 4: Technical Reference
This part outlines the unit operation giving a technically.

Part 5: Maintenance
This part explains maintenance of the unit. It includes details of disassembly / assembly, adjustments required when assembling, troubleshooting procedures, and full wiring / circuit diagrams, etc

This manual does not contain complete information required for disassembling and assembling the printer. Please also refer to the separate Canon W7200, W7250 Parts Catalog

FORMAT: PDF document!
