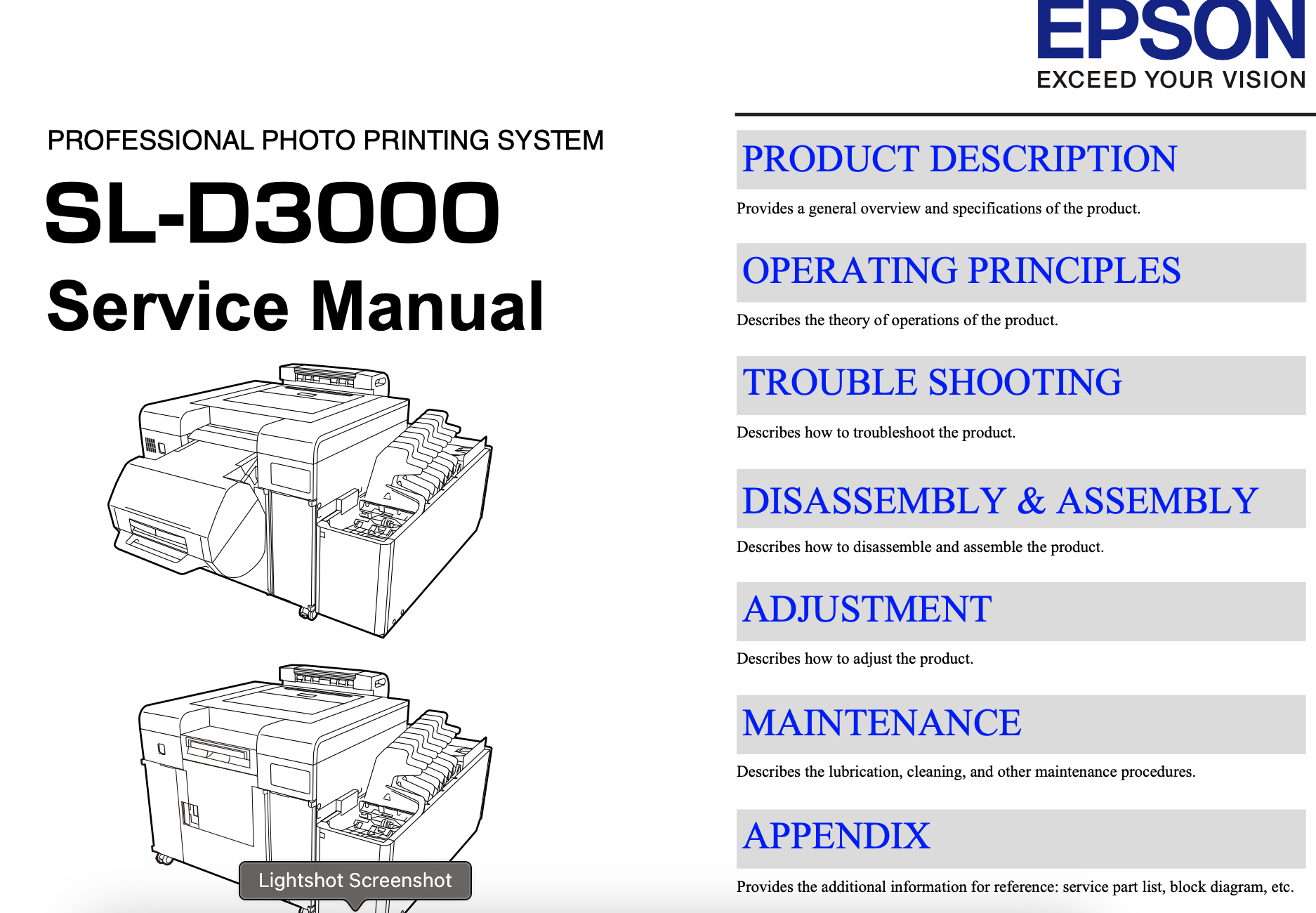

This Epson Sure Lab SL-D3000 Service Manual, Exploded View, Wiring diagram and Parts List describes maintenance and repair procedures of the printer.
About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.
CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product
CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of mechanical operations of the product.
CHAPTER 3. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.
CHAPTER 4. DISASSEMBLY / REASSEMBLY
Describes the disassembly/reassembly procedures for main parts/units of the product.
CHAPTER 5. ADJUSTMENT
Describes the required adjustments for servicing the product
CHAPTER 6. MAINTENANCE
Describes maintenance items and procedures for servicing the product
APPENDIX
- Service Tool
- Connector Summary
- Wiring Diagram
- Board Layout Diagram
- Board Voltage List
FORMAT: High resolution PDF document! 569 pages.
