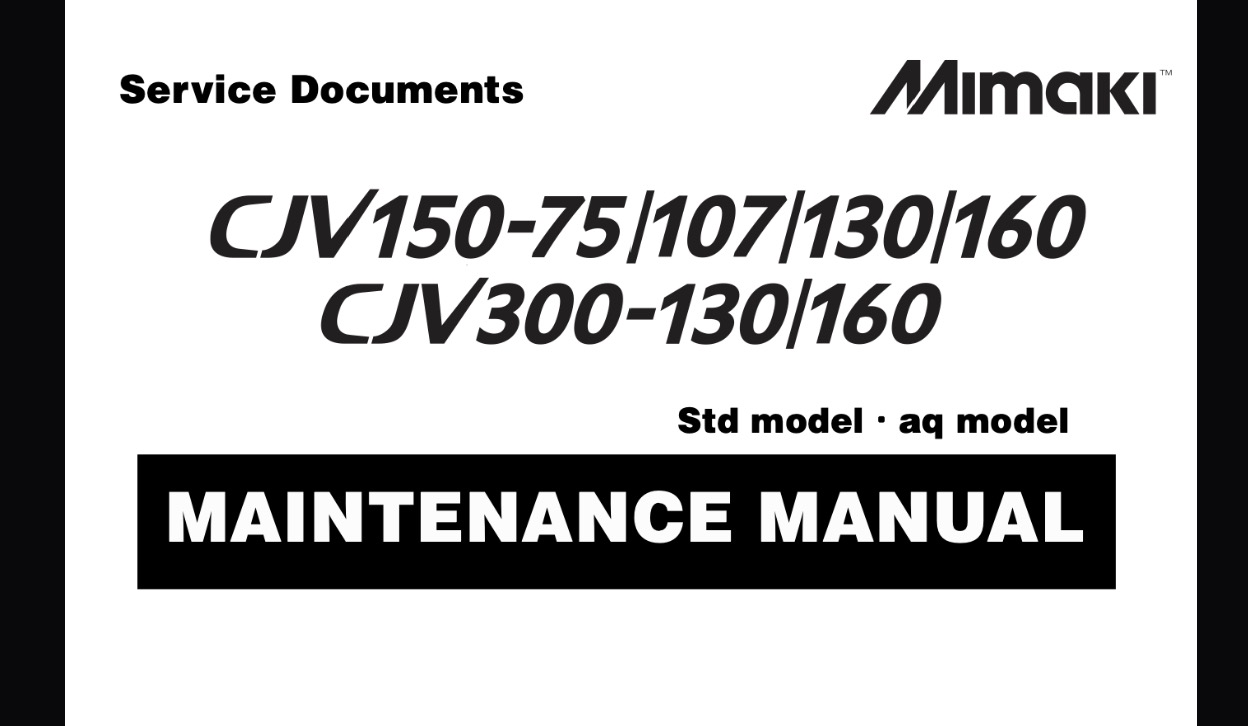

Mimaki CJV150-75, CJV150-107, CJV150-130, CJV150-160, CJV300-130, CJV300-160 Maintenance Manual
This Maintenance Manual covers items required to be remembered to conduct maintenance works for the Mimaki CJV150-75, CJV150-107, CJV150-130, CJV150-160, CJV300-130, CJV300-160 series of color ink jet plotter in the field.
Maintenance works have to be carried out by serviceman who have learned disassembly, assembly and adjustment techniques with required tools and measuring appartures.
This Service Manual covers existing maintenance parts. For any failure other than those described in this manual, factory-repairs will be necessary.
TABLE OF CONTENTS
1. Operating Principle
2. Electrical Parts
3. Workflow
4. Adjustment Items
5. Test Items
6. Disassembly and Reassembly
7. Troubleshooting
8. Operation Flow
FORMAT: Scanned documents. PDF format. 299 Pages.
