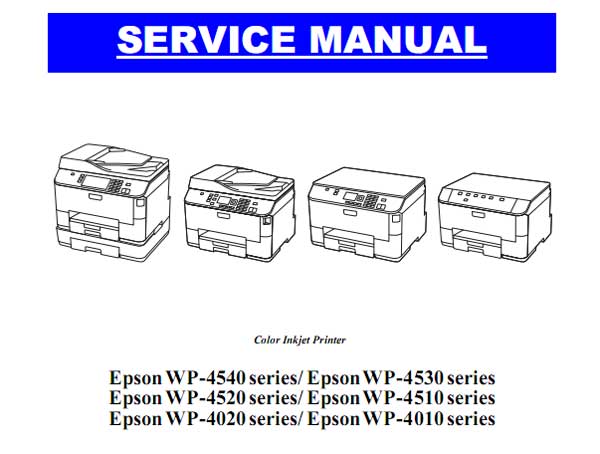

This Epson WP-4010 series, WP-4020 series, WP-4090 series, WP-4510 series, WP-4520 series, WP-4530 series, WP-4540 series , WP-4590 seriesService Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.
CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product.
CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of mechanical operations of the product.
CHAPTER 3. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.
CHAPTER 4. DISASSEMBLY / REASSEMBLY
Describes the disassembly/reassembly procedures for main parts/units of the product.
CHAPTER 5. ADJUSTMENT
Describes the required adjustments for servicing the product.
CHAPTER 6. MAINTENANCE
Describes maintenance items and procedures for servicing the product.
FORMAT: High resolution PDF document!
Zip archive: 46 055 kB
Order and download On-Line!
|
