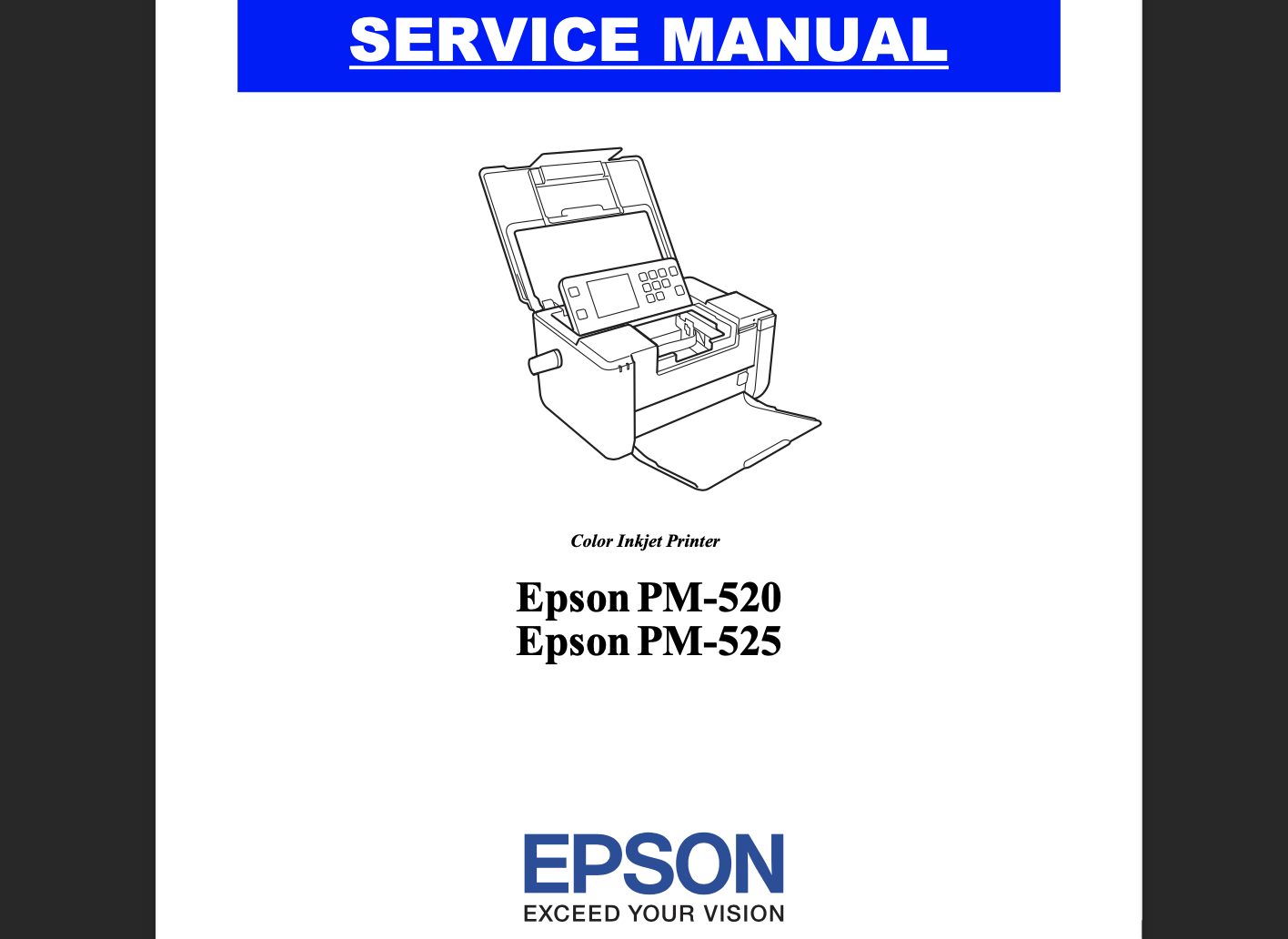

This Epson PictureMate PM520, PM525 printers Service Manual, Exploded View describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
This manual consists of six chapters and Appendix.
CHAPTER 1. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.
CHAPTER 2. DISASSEMBLY / ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product.
CHAPTER 3. ADJUSTMENT
Provides Epson-approved methods for adjustment.
CHAPTER 4. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.
CHAPTER 5. REFURBISHMENT
Describes refurbishing work of the product and its purpose.
Appendix
Provides the following additional information for reference:
- Connector Diagram
- Protection for Transportation
FORMAT: High resolution PDF document!
Zip archive: 23 920 kB
|
