HP Designjet 4500 Series, 4520 Series Printers Service Manual and Parts List and Diagrams

$9.99

Click to enlarge

HP Designjet 4500 Series, Designjet 4520 Series Printers Service Manual and Parts List and Diagrams

This manual contains the necessary information to service the HP Designjet 4500 Series, Designjet 4520 Series Printers

Table of Contents

Troubleshooting
System Error Codes

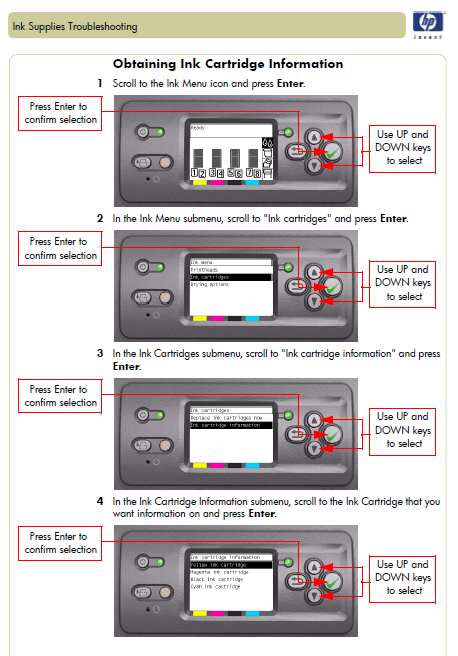

Ink Supplies Troubleshooting
Service Tests and Utilities
Service Calibrations
Print Quality
Parts and Diagrams
Removal and Installation
Preventive Maintenance

FORMAT: High resolution PDF document!
ZIP archive: 22 555 kB
