Pioneer KEH-P525, KEH-P5700, KEH-P5750 multi-CD control high power cassette player Service Manual, exploded views and parts list New!

$16.99
Pioneer KEH-P525, KEH-P5700, KEH-P5750 multi-CD control high power cassette player Service Manual, exploded views and parts list <font color=red>New!</font>

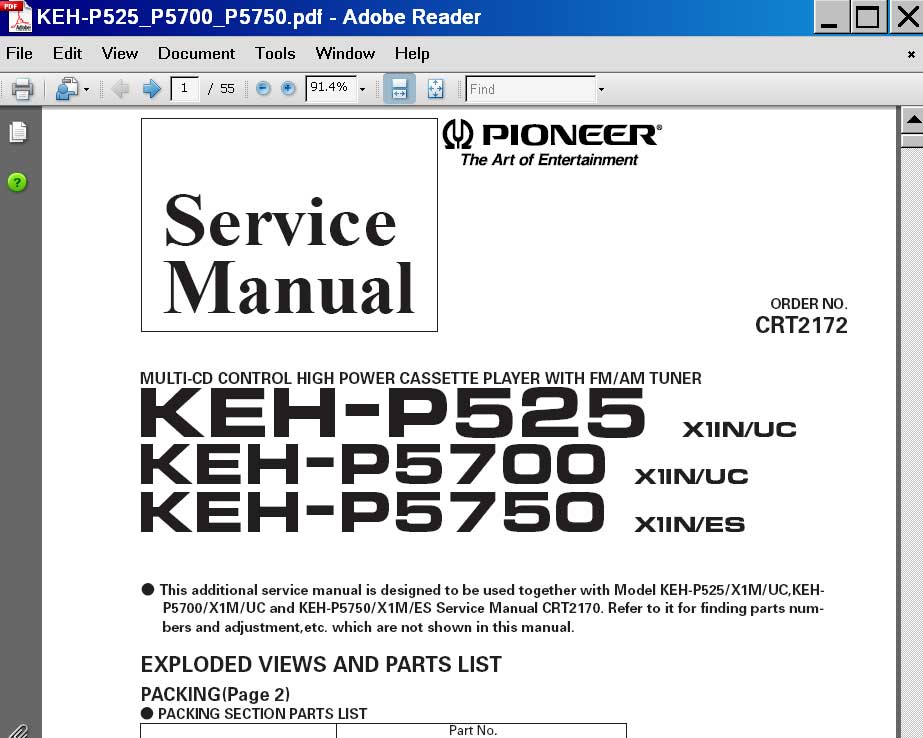

   Click to enlarge


This Pioneer KEH-P525, KEH-P5700, KEH-P5750 multi-CD control high power cassette player Service Manual and Part List describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the player.


CONTENTS

1. SAFETY INFORMATION ........................................2

2. EXPLODED VIEWS AND PARTS LIST......................2

3. SCHEMATIC DIAGRAM .......................................12

4. PCB CONNECTION DIAGRAM...............................22

5. ELECTRICAL PARTS LIST ....................................32

6. ADJUSTMENT .....................................................39

7. GENERAL INFORMATION ......................................41

7.1 PARTS........................................................... ...41
7.1.1 IC .................................................................41
7.1.2 DISPLAY ........................................................45
7.2 DISASSEMBLY ..................................................46
7.3 BLOCK DIAGRAM...............................................47
8. OPERATIONS AND SPECIFICATIONS ....................48

FORMAT: High resolution PDF document!
Zip archive: 7 010 kB
