Epson T20, T20E, T23, T26, S20 Printers Service Manual New!

Epson T20, T20E, T23, T26, S20 Printers Service Manual New!	$9.99

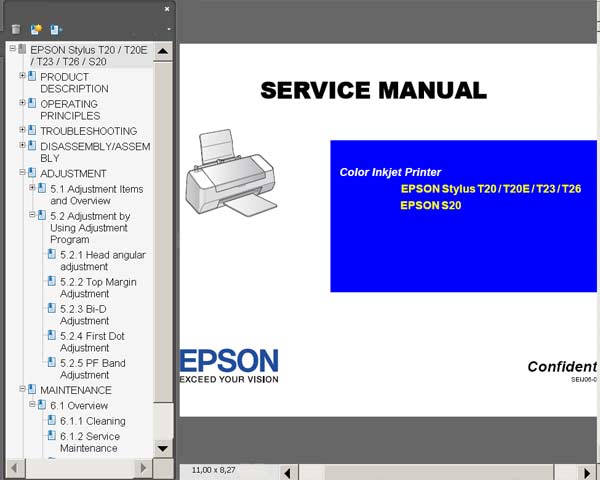

Click to enlarge

This Epson T20, T20E, T23, T26, S20 service manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of Epson Stylus T11. The instructions and procedures included herein are intended for the experienced repair technicians, and attention should be given to the precautions on the preceding page.

The chapters are organized as follows:

CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product.

CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of electrical and mechanical operations of the product.

CHAPTER 3. TROUBLESHOOTING
Provides the step-by-step procedures for troubleshooting.

CHAPTER 4. DISASSEMBLY AND ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product.

CHAPTER 5. ADJUSTMENTS
Provides Epson-approved methods for adjustment.

CHAPTER 6. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.

FORMAT: High resolution PDF document!
ZIP archive: 11 128 kB
Epson T20, T20E, T23, T26, S20 service Manual
