Epson Stylus Office TX620FWD, BX625FWD, Epson WorkForce 610 / 620 / 625 / 635, Epson Stylus TX560WD, SX525WD BX525WD, Epson ME OFFICE 900WD, 960FWD printers Service Manual New!

$11.99
Epson Stylus Office TX620FWD, BX625FWD,  Epson WorkForce  610 / 620 / 625 / 635, Epson Stylus TX560WD, SX525WD BX525WD, Epson ME OFFICE 900WD, 960FWD  printers Service Manual  <font color=red>New!</font>
   Click to enlarge

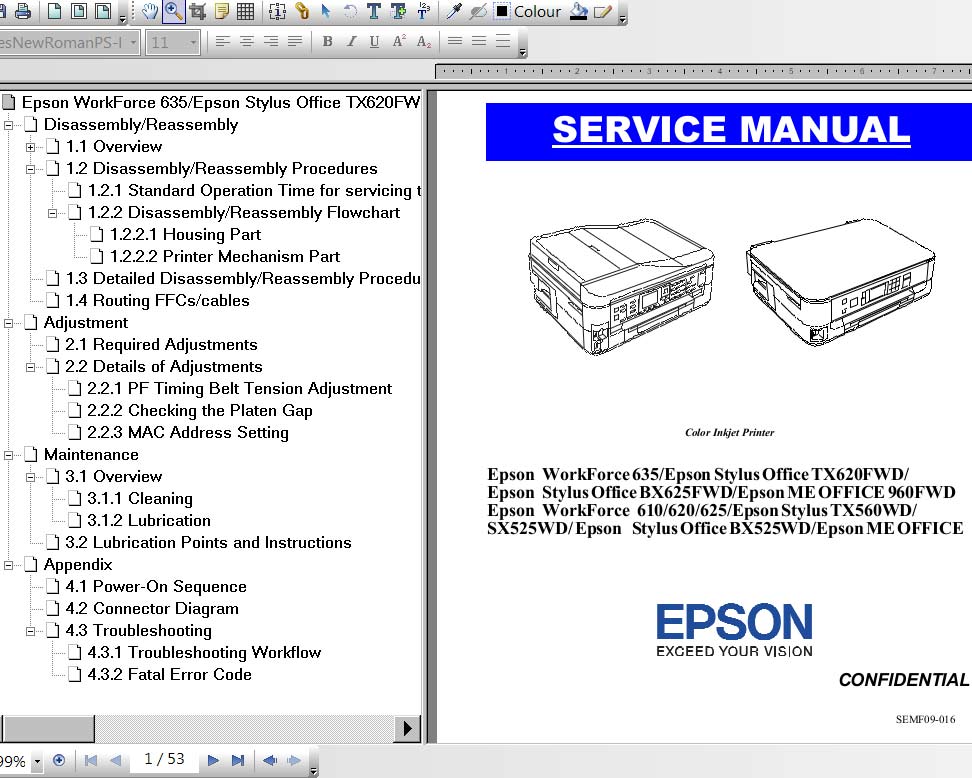

This Epson Stylus Office TX620FWD, BX625FWD, Epson WorkForce 610 / 620 / 625 / 635, Epson Stylus TX560WD, SX525WD BX525WD, Epson ME OFFICE 900WD, 960FWD Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.


MANUAL CONTENT:

Chapter 1 Disassembly/Assembly
1.1 Overview
1.1.1 Tools
1.2 Disassembly/Assembly Procedures
1.2.1 Standard Operation Time for servicing the product (TBD)
1.2.2 Disassembling/Assembling Flowchart
1.2.2.1 Housing Part
1.2.2.2 Printer Mechanism Part
1.3 Details of Disassembling/Assembling by Parts/Unit
1.4 Routing FFC/cables

Chapter 2 Adjustment
2.1 Required Adjustments (TBD)
2.2 Details of Adjustments
2.2.1 PF Timing Belt Tension Adjustment
2.2.2 Checking the Platen Gap
2.2.3 MAC Address Setting

Chapter 3 Maintenance
3.1 Overview
3.1.1 Cleaning
3.1.2 Lubrication
3.2 Lubrication Point

Chapter 4 Appendix
4.1 Power-On Sequence
4.2 Connector Summary

4.3 Troubleshooting
4.3.2 Fatal Error Code

FORMAT: High resolution PDF document!
Zip archive: 22 654 kB
