CANON BJ-W7200, W7250 printer Parts Catalog

$9.99
CANON BJ-W7200, W7250 printer  Parts Catalog

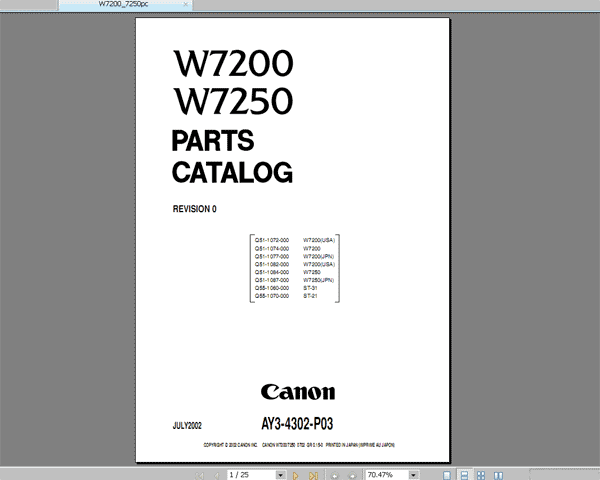

   Click to enlarge


Canon W7200, W7250 printer Parts Catalog


CONTENTS

A. Parts layout illustration


a) Parts search
Find a part from the parts layout illustration and find its key number from the parts list to identify the part number and name. For screws, nuts, washers, lock washers, pins, spacers, see SCREWS &WASHERS LIST.
Note: If parts have the same or similar shape but different specifications, their key number is assigned to several part numbers and names in the parts list.

b) Parts replacement procedure
To replace parts, the parts layout illustrations have figure numbers according to the disassembly procedure of the product. The parts that require careful work are shown the illustration.

C) TOOL LIST
This is a list of tools used for servicing products.

Parts list
a) FIGURE & KEY No.
The FIGURE & KEY No. column corresponds to the key numbers assigned to the parts in the parts layout illustration. It also corresponds to the part locations printed on the PC board.

b) PART NUMBER
The PART NUMBER column gives the part numbers corresponding to the key numbers. To order a part, indicate the part number clearly.
Note: Parts marked NPN are not service parts.

c) RANK
The service parts with N in the RANK column are order parts.

d) QTY
The QTY column gives the number of parts in the corresponding components layout illustration.

e) DESCRIPTION
The DESCRIPTION column gives the part names in English. To order a part, indicate the part name, too.

B. SCREWS & WASHERS LIST


This is a list of screws, nuts, washers, lock washers, pins, and spacers. The QTY column does not give the number of parts used.

C. NUMERICAL INDEX


All the parts listed in this parts catalog are arranged in order of part number. You can identify part locations and names from the

NUMERICAL INDEX.

FORMAT: PDF document!
