CANON MP640 Service Manual - Service Manuals download service

CANON MP640 Service Manual [SM_MP640]	$9.99

Click to enlarge

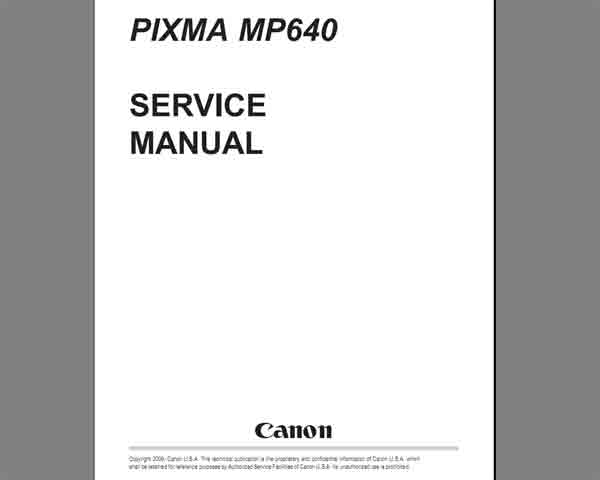

This service manual provides basic information required for performing Canon MP640 field service to maintain the product quality and functions of machine.

TABLE OF CONTENTS

1. MAINTENANCE
1-1. Adjustment, Periodic Maintenance, Periodic Replacement Parts, and Replacement Consumables by Service Engineer
1-2. Customer Maintenance
1-3. Special Tools
1-4. Sensors
1-5. Serial Number Location

2. LIST OF ERROR DISPLAY / TROUBLESHOOTING
2-1. Operator Call Errors
2-2. Service Call Errors
2-3. Troubleshooting by Symptom

3. REPAIR
3-1. Major Replacement Parts
3-2. Part Replacement Procedures
(1) External housing removal
(2) Cable wiring and connection
(3) Emblem removal
(4) Carriage unlocking
(5) ASF unit removal
(6) Right chassis removal
(7) Carriage unit removal
(8) Spur unit and platen unit removal
(9) Purge drive system unit (right plate) and switch system unit (left plate) removal
(10) Engine unit reassembly
(11) Ink absorber replacement

4. ADJUSTMENT / SETTINGS
4-1. User Mode
4-2. Service Mode
(1) Service mode operation procedures
(2) Service Tool functions
(3) LF / Eject correction
(4) Button and LCD test
(5) Ink absorber counter setting MP560
4-3. Grease Application
4-4. Special Notes on Servicing
(1) Print head problem
(2) Paper feed motor adjustment
(3) Carriage unit replacement
(4) Document pressure sheet (sponge sheet) replacement
(5) Ink absorber counter setting
4-5. Verification After Repair
(1) Standard inspection flow
(2) Service test print
(3) Ink absorber counter value print

5. MACHINE TRANSPORTATION

FORMAT: High resolution PDF document!
ZIP archive: 5 847 kB
