CANON MP530 Service Manual

$9.99
CANON MP530 Service Manual

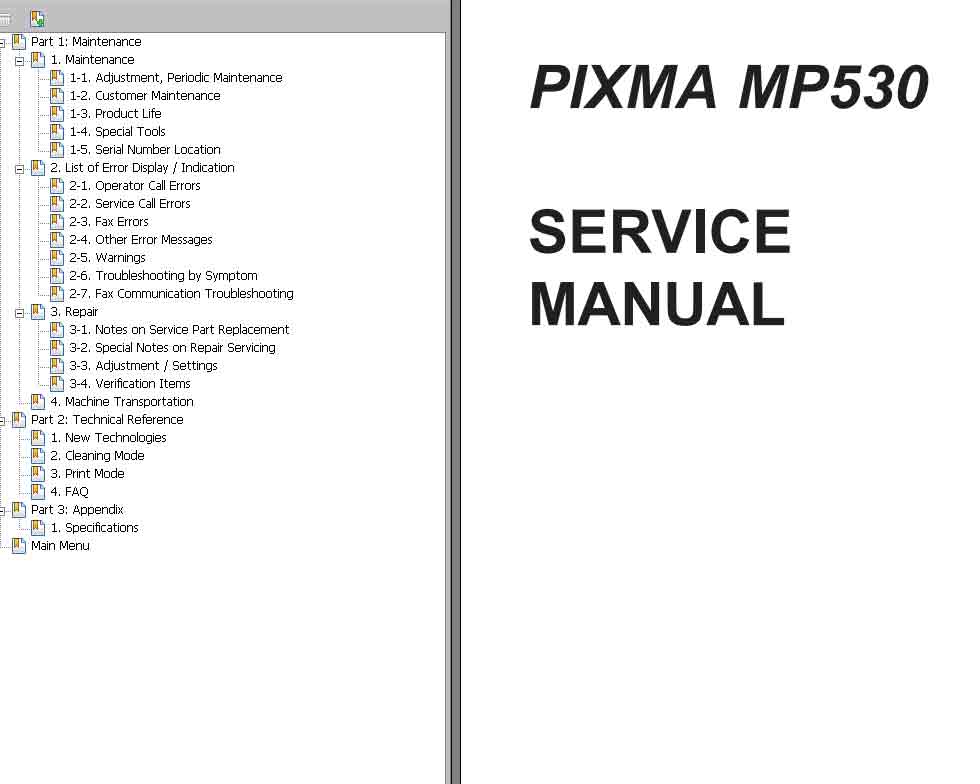

   Click to enlarge


This service manual provides basic information required for performing Canon MP530 field service to maintain the product quality and functions of machine.

TABLE OF CONTENTS

1. MAINTENANCE
1-1. Adjustment, Periodic Maintenance, Periodic Replacement Parts, and Replacement Consumables by Service Engineer
1-2. Customer Maintenance
1-3. Product Life
1-4. Special Tools
1-5. Serial Number Location
2. LIST OF ERROR DISPLAY / INDICATION
2-1. Operator Call Errors
2-2. Service Call Errors
2-3. Fax Errors
2-4. Other Error Messages
2-5. Warnings
2-6. Troubleshooting by Symptom
2-7. FAX communication troubleshooting
3. REPAIR
3-1. Notes on Service Part Replacement (and Disassembling / Reassembling)
3-2. Special Notes on Repair Servicing
(1) Power supply unit removal / reassembly
(2) Right and left side covers removal
(3) Middle panel R removal
(4) Front panel R removal
(5) Middle panel L removal
(6) Front panel L removal
(7) Front door unit removal
(8) Emblem removal
(9) ADF unit removal
(10) Scanner unit removal
(11) Main case removal
(12) NCU board ass'y removal
(13) NCU sub board ass'y removal
(14) Logic board ass'y removal
(15) Printer unit removal
(16) Operation panel unit / LCD unit removal
(17) DF guide sheet holder / DF guide sheet removal
(18) Document feed roller, Separation roller, and Separation tab cleaning
(19) Removal of the parts in the ADF unit 3-3. Adjustment / Settings
(1) Paper feed motor adjustment
(2) Grease application
(3) Waste ink counter setting
(4) White sponge sheet attachment
(5) User mode
(6) Service mode
Service mode operation
Destination settings
Waste ink amount setting
Button and LCD test
3-4. Verification Items
(1) Service test print
(2) EEPROM information print
(3) Fax report
4. MACHINE TRANSPORTATION

TECHNICAL REFERENCE
1. NEW TECHNOLOGIES
2. CLEANING MODE AND AMOUNT OF INK PURGED
3. PRINT MODE
3-1. Normal Color Printing via Computer
3-2. Normal Grayscale Printing via Computer
3-3. Borderless Printing via Computer
3-4. Duplex Printing via Computer
3-5. Camera Direct Printing
3-6. Copying
4. FAQ (Problems Specific to the MP530 and Corrective Actions)

APPENDIX
SPECIFICATIONS

FORMAT: High resolution PDF document!
ZIP archive: 3 188 kB
