CANON MP520 Service Manual

$9.99
CANON MP520 Service Manual

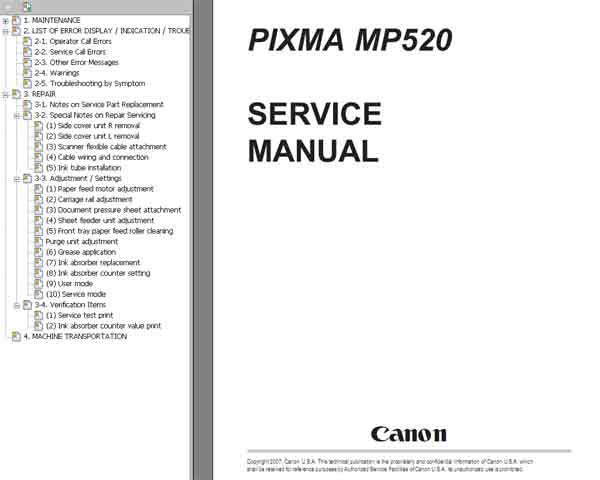

   Click to enlarge


This service manual provides basic information required for performing Canon MP520 field service to maintain the product quality and functions of machine.

TABLE OF CONTENTS

1. MAINTENANCE
1-1. Adjustment, Periodic Maintenance, Periodic Replacement Parts, and Replacement Consumables by Service Engineer
1-2. Customer Maintenance
1-3. Special Tools
1-4. Serial Number Location
2. LIST OF ERROR DISPLAY / INDICATION
2-1. Operator Call Errors
2-2. Service Call Errors
2-3. Other Error Messages
2-4. Warnings
2-5. Troubleshooting by Symptom
3. REPAIR
3-1. Notes on Service Part Replacement
3-2. Special Notes on Repair Servicing
(1) Side cover unit R removal
(2) Side cover unit L removal
(3) Scanner flexible cable attachment
(4) Cable wiring and connection
(5) Ink tube installation
3-3. Adjustment / Settings
(1) Paper feed motor adjustment
(2) Carriage rail adjustment
(3) Document pressure sheet attachment
(4) Sheet feeder unit adjustment
(5) Front tray paper feed roller cleaning
(6) Grease application
(7) Ink absorber replacement
(8) Ink absorber counter setting
(9) User mode
(10) Service mode
A: Service mode operation
B: Destination settings
C: Ink absorber counter resetting D: Ink absorber counter setting E: Button and LCD test
3-4. Verification Items
(1) Service test print
(2) Ink absorber counter value print
4. MACHINE TRANSPORTATION

TECHNICAL REFERENCE
SPECIFICATIONS

FORMAT: High resolution PDF document!
ZIP archive: 1 948 kB
