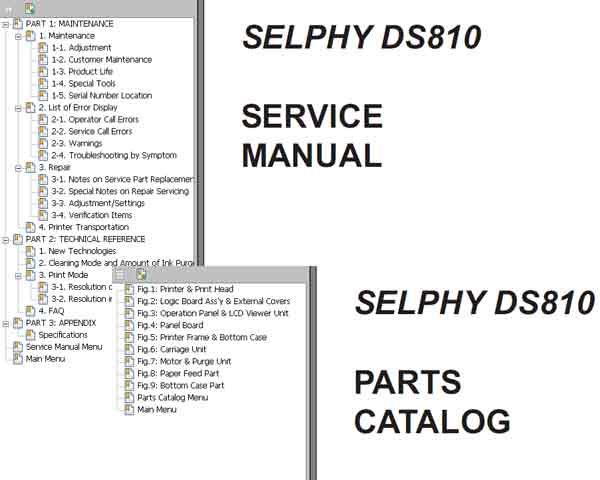

Canon SELPHY DS810 printer Service Manual and Parts Catalog
Canon SELPHY DS810 Service Manual contents:
1. MAINTENANCE
1-1. Adjustment, Periodic Maintenance, Periodic Replacement Parts, and Replacement Consumables by Service Engineer
(1) Adjustment
(2) Periodic maintenance
(3) Periodic replacement parts
(4) Replacement consumables
(5) Replacement of the print head
1-2. Customer Maintenance
1-3. Product Life
(1) Printer
(2) Print head
(3) Ink tank
1-4. Special Tools
1-5. Serial Number Location
2. LIST OF ERROR DISPLAY / INDICATIONS
2-1. Operator Call Errors
2-2. Service Call Errors
2-3. Warnings
2-4. Troubleshooting by Symptom
3. REPAIR
3-1. Notes on Service Part Replacement
3-2. Special Notes on Repair Servicing
(1) Flexible cable and harness wiring, connection
(2) Notes on disassembly and re-assembly
3-3. Adjustment / Settings
(1) Paper feed motor adjustment
(2) Pump unit adjustment
(3) Grease application
(4) Waste ink counter setting
(5) User mode
(6) Service mode
3-4. Verification Items
(1) Service test print
(2) EEPROM information print
4. PRINTER TRANSPORTATION
TECHNICAL REFERENCE
1. NEW TECHNOLOGIES
(1) Main difference from DS700
2. CLEANING MODE AND AMOUNT OF INK PURGED
3. PRINT MODE
3-1. Resolution during Printing via Computer
3-2. Resolution in Card Direct / Camera Direct / Print Beam Printing
FAQ (Problems Specific to the SELPHY DS810 and Corrective Actions
APPENDIX
SPECIFICATIONS
FORMAT: High resolution PDF document!
ZIP archive: 2 840 kB
|
