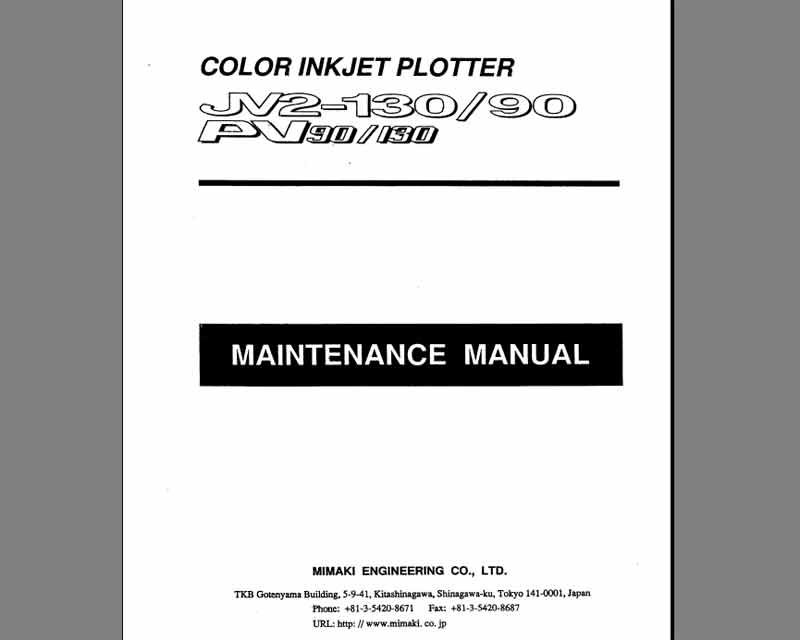

Mimaki JV2-130/90, PV90/130 Maintenace Manual
This Maintenance Manual covers items required to be remembered to conduct maintenance works for the Mimaki JV2/PV series of color ink jet plotter in the field.
Maintenance works have to be carried out by serviceman who have learned disassembly, assembly and adjustment techniques with required tools and measuring appartures.
This Service Manual covers existing maintenance parts. For any failure other than those described in this manual, factory-repairs will be necessary.
TABLE OF CONTENTS
1. Overview of maintenance
2. Explanation of operation
3. Recovery procedures from troubles
4. Maintenance mode
5. Disassembling / assembling procedure
6. Adjustment
FORMAT: Scanned documents. PDF format
ZIP archive: 4 685 kB
|
