Mimaki JV4 Series Maintenance Manual

$9.99
Mimaki JV4 Series Maintenance Manual
   Click to enlarge

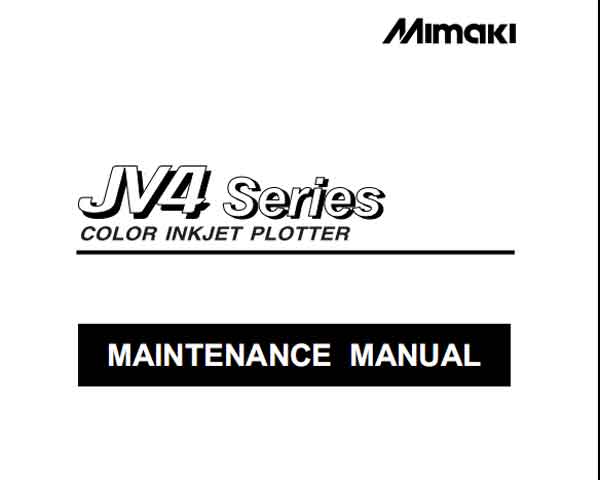

Mimaki JV4 Series Maintenance Manual


This Maintenance Manual covers items required to be remembered to conduct maintenance works for the Mimaki JV4 Series of color ink jet plotter in the field.

Maintenance works have to be carried out by serviceman who have learned disassembly, assembly and adjustment techniques with required tools and measuring appartures.

This Service Manual covers existing maintenance parts. For any failure other than those described in this manual, factory-repairs will be necessary.

TABLE OF CONTENTS

1. Overview of maintenance
2. Explanation of operation
3. Troubleshooting
4. Maintenance mode
5. Disassembling / assembling procedure
6. Adjustment

FORMAT: Scanned documents. PDF format
ZIP archive: 2 445 kB
