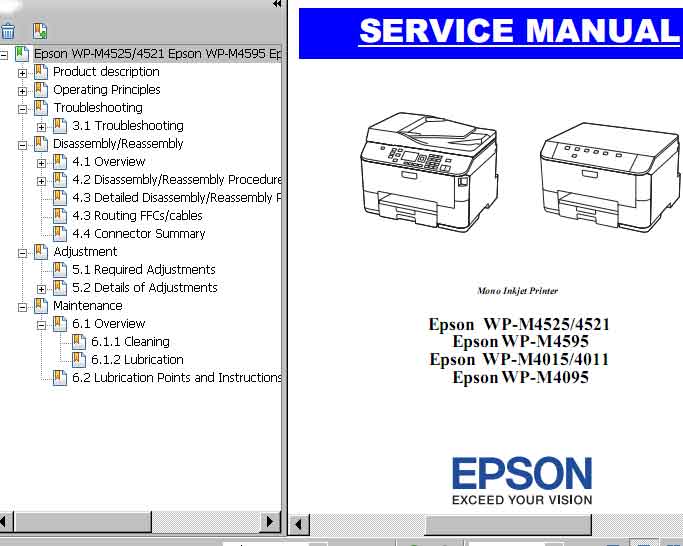

This Epson WP-M4011, WP-M4015, WP-M4095, WP-M4521, WP-M4525, WP-M4595, PXB750F Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
WP-M4595/4525/4521/4095/4015/4011 are mono inkjet printers made based on WP-4540/4530/4520/4510/4020/4010 series.
About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.
CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product
CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of mechanical operations of the product.
CHAPTER 3. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.
CHAPTER 4. DISASSEMBLY / REASSEMBLY
Describes the disassembly/reassembly procedures for main parts/units of the product.
CHAPTER 5. ADJUSTMENT
Describes the required adjustments for servicing the product
CHAPTER 6. MAINTENANCE
Describes maintenance items and procedures for servicing the product
FORMAT: High resolution PDF document!
Zip archive: 37 401 kB
Order and download On-Line!
|
