SC-S50600, SC-S70600 Series Large Format Color Inkjet Printer Service Manual New!

SC-S50600, SC-S70600 Series Large Format Color Inkjet Printer Service Manual New!	$19.99

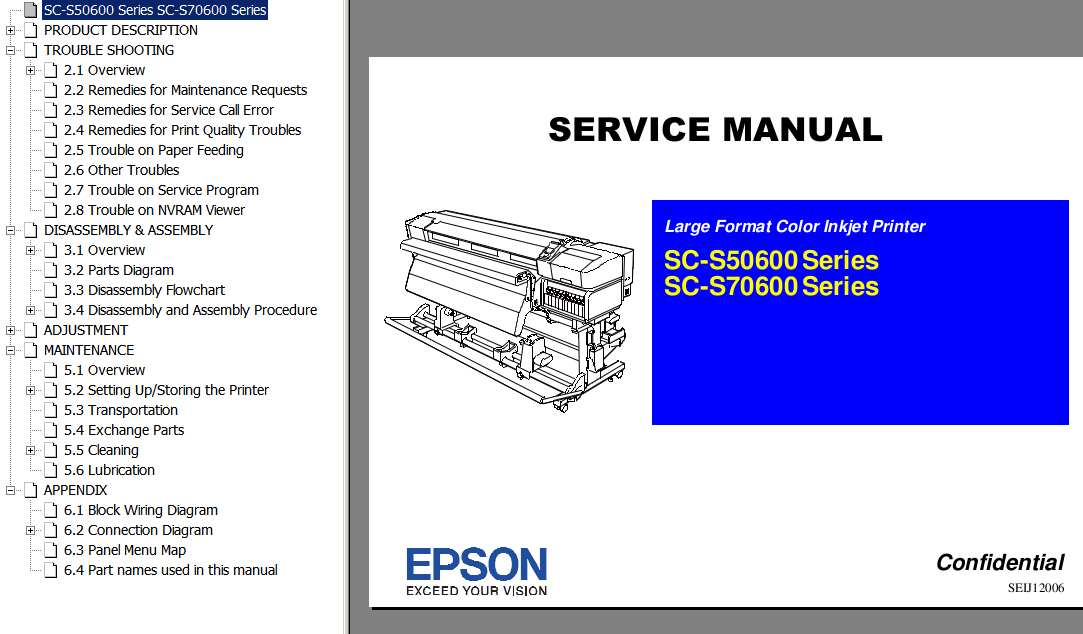

Click to enlarge

This Epson Large Format Color Inkjet Printer SC-S50600, SC-S70600 Series Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
SC-S50600/SC-S70600 series were designed based on SC-S30600 series. The most of the mechanical structures and functions are the same as those of SC-S30600. This manual provides only the differences from SC-S30600 series and omits descriptions common to SC-S30600.

About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.

CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product

CHAPTER 2. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.

CHAPTER 3. DISASSEMBLY / ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product

CHAPTER 4. ADJUSTMENT
Provides Epson-approved methods for adjustment.

CHAPTER 5. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.

CHAPTER 6. APPENDIX
Provides the following additional information for reference:
- Wiring Diagram
- Panel Menu Maps

FORMAT: High resolution PDF document!
Zip archive: 56 112 kB
Order and download On-Line!
