CANON LBP-860 Laser Printer Service Manual and Parts Catalog

$14.99
CANON LBP-860 Laser Printer Service Manual and Parts Catalog
   Click to enlarge

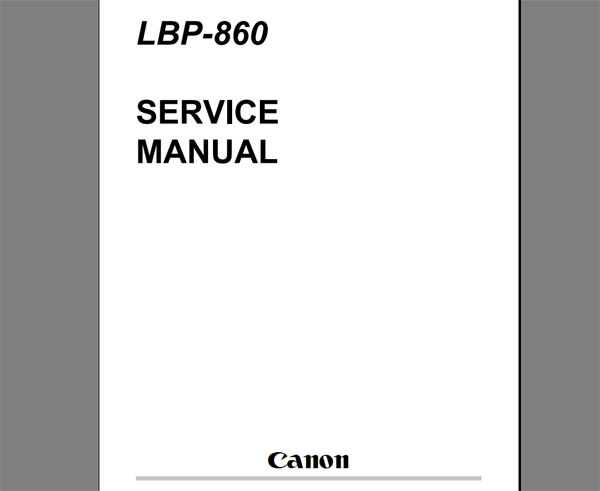

CANON LBP-860 Laser Printer Service Manual and Parts Catalog

This Service Manual contains basic information required for after-sales service of the laser beam printer LBP-800 (hereinafter referred to as the "printer"). This information is vital to the service technician in maintaining the high print quality and performance of the printer.

This manual consists of the following chapters:

Chapter 1: Product information
Features, specifications, operation, and installation

Chapter 2: Operation and Timing
A description of the operating principles and timing sequences of the electrical and mechanical systems.

Chapter 3: The Mechanical System
Explanation of mechanical operation, disassembly, reassembly and adjustment procedures

Chapter 4: Troubleshooting
Troubleshooting procedures, reference values and adjustments, maintenance and servicing, etc.

Appendix: General timing chart, general circuit diagram, etc.


FORMAT: High resolution PDF document!
ZIP archive: 2 276 kB



Step 1
ADD TO CART
Step 2
CHECKOUT
Select payment method.
Step 3
Confirm the order.
