Brother MFCJ6510DW, MFCJ6710DW, MFCJ6910DW Service Manual

$19.99

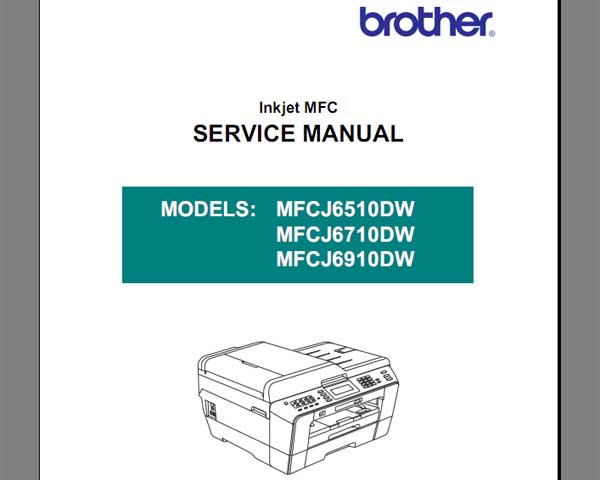

Brother MFCJ6510DW, MFCJ6710DW, MFCJ6910DW  Service Manual
   Click to enlarge


Brother MFCJ6510DW, MFCJ6710DW, MFCJ6910DW

This manual provides technical information necessary for servicing the applicable product. Information on maintenance of the applicable product is given in the Simplified Service Manual. Please refer to them when necessary.

CONTENTS:

CHAPTER 1. SPECIFICATION
CHAPTER 2. ERROR INDICATION AND TROUBLESHOOTING
CHAPTER 3. DISASSEMBLY AND ASSEMBLY
CHAPTER 4. ADJUSTMENT AND UPDATING OF SETTINGS, REQUIRED AFTER PARTS REPLACEMENT
CHAPTER 5. SERVICE FUNCTIONS

FORMAT: High resolution PDF document on 395 pages
ZIP archive: 26 272 kB
