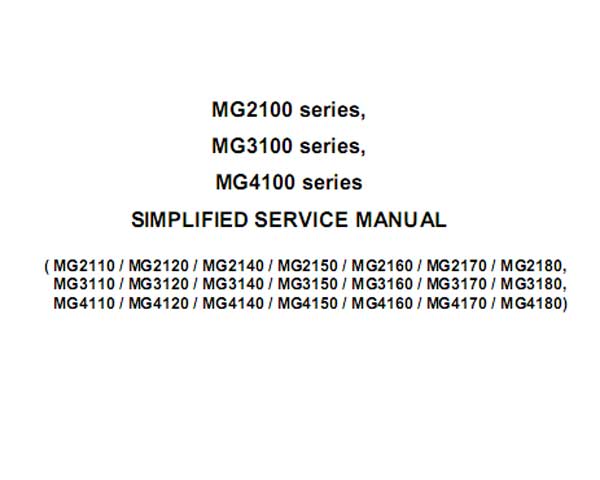

CANON MG2110, MG2120, MG2140, MG2150, MG2160, MG2170, MG2180, MG3110, MG3120, MG3140, MG3150, MG3160, MG3170, MG3180, MG4110, MG4120, MG4140, MG4150, MG4160, MG4170, MG4180 printers Simplified Service Manual and Parts List included
This manual provides technical information necessary for servicing the applicable product.
Information on maintenance of the applicable product is given in the Simplified Service Manual. Please refer to them when necessary.
CONTENTS:
1. LIST OF ERROR DISPLAY / TROUBLESHOOTING
2. ADJUSTMENT / SETTINGS
- Service Mode
- Service Tool v3.000 operation
- Ink absorber counter setting
- Adjustment
- User Mode
- Special Notes on Assembling
3. SPECIAL NOTES ON SERVICING
- Ink Absorber Configuration
- Main Ink Absorber Replacement
- How to reset the ink absorber counter
- Preventive Replacement of Ink Absorber
- Print Head Alignment
- Detection of Remaining Ink Amount
4. EXTERNAL VIEW / PARTS LIST
FORMAT: High resolution PDF document on 31 pages
ZIP archive: 2 205 kB
|
