Canon MG8110, MG8120, MG8130, MG8140, MG8150, MG8170, MG8180 printers Service Manual and Parts Catalog

Canon MG8110, MG8120, MG8130, MG8140, MG8150, MG8170, MG8180 printers Service Manual and Parts Catalog	$19.99

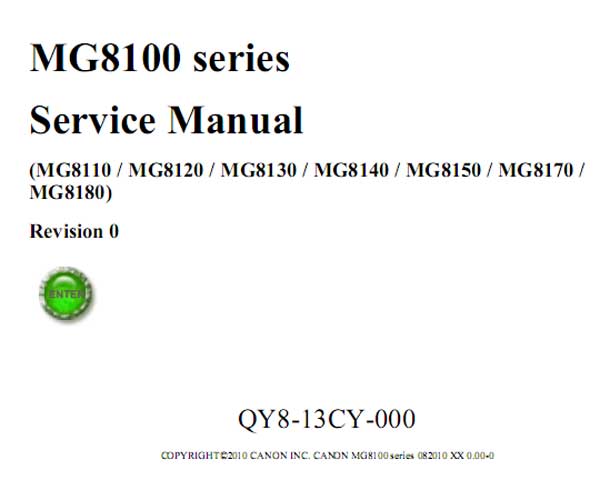

Click to enlarge

CANON MG8110, MG8120, MG8130, MG8140, MG8150, MG8170, MG8180 printers Service Manual and Parts Catalog - 2 documents

This manual provides technical information necessary for servicing the applicable product. Information on maintenance of the applicable product is given in the Simplified Service Manual. Please refer to them when necessary.
CONTENTS:

1. TROUBLESHOOTING

2. REPAIR
- Major Replacement Parts and Adjustment
- Part Replacement Procedures
- Ink absorber replacement

3. ADJUSTMENT / SETTINGS
- Adjustment and Settings in Service Mode
- Ink absorber counter setting
- Special Notes on Servicing
- Preventive Replacement of Ink Absorber

4. VERIFICATION AFTER REPAIR

5. APPENDIX

6. MACHINE TRANSPORTATION

FORMAT: High resolution PDF document on 74 pages for Service Manual and 37 pages for Parts Catalog
ZIP archive: 19 283 kB
