WF-7110 Series, WF-7610 Series, WF-7620 Series, PXM5041F printers Service Manual New!

$19.99
<b>WF-7110 Series, WF-7610 Series,  WF-7620 Series, PXM5041F </b> printers Service Manual  <font color=red>New!</font>
   Click to enlarge

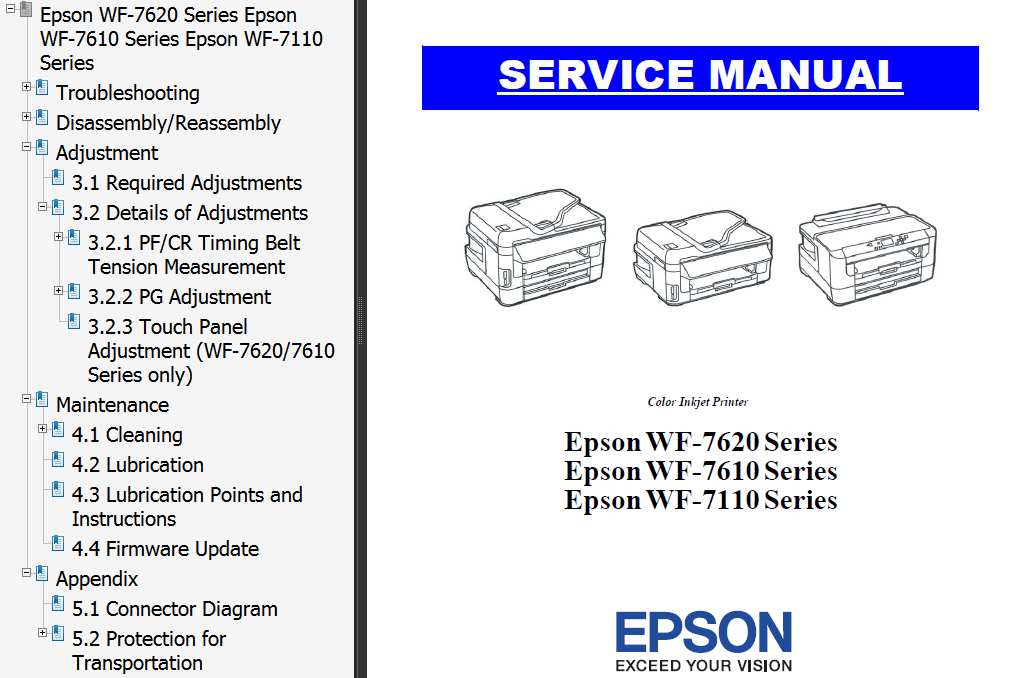

This Epson WF-7110 Series, WF-7610 Series, WF-7620 Series, PXM5041F Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.



About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.

CHAPTER 1. TROUBLESHOOTING

CHAPTER 2. DISASSEMBLY / REASSEMBLY
Describes the disassembly/reassembly procedures for main parts/units of the product, and provides the standard operation time for servicing the product.

CHAPTER 3. ADJUSTMENT
Describes the required adjustments for servicing the product.

CHAPTER 4. MAINTENANCE
Describes maintenance items and procedures for servicing the product.

CHAPTER 5. APPENDIX
Provides the following additional information for reference:
� Connector Diagram
� Protection for transportation

FORMAT: High resolution PDF document!
Zip archive: 31 367 kB

Order and download On-Line!

This printer models Epson WF-7110, WF-7111, WF-7610, WF-7611, WF-7620, WF-7621 are NOT supported by WIC reset utility and its waste ink pads counter CAN NOT be reset by WIC Reset Utility. This models have separate maintenance waste ink cartridge with its own IC Chip. So, if waste ink counters overflow - customer has to replace Maintenance Cartridge by new one.
