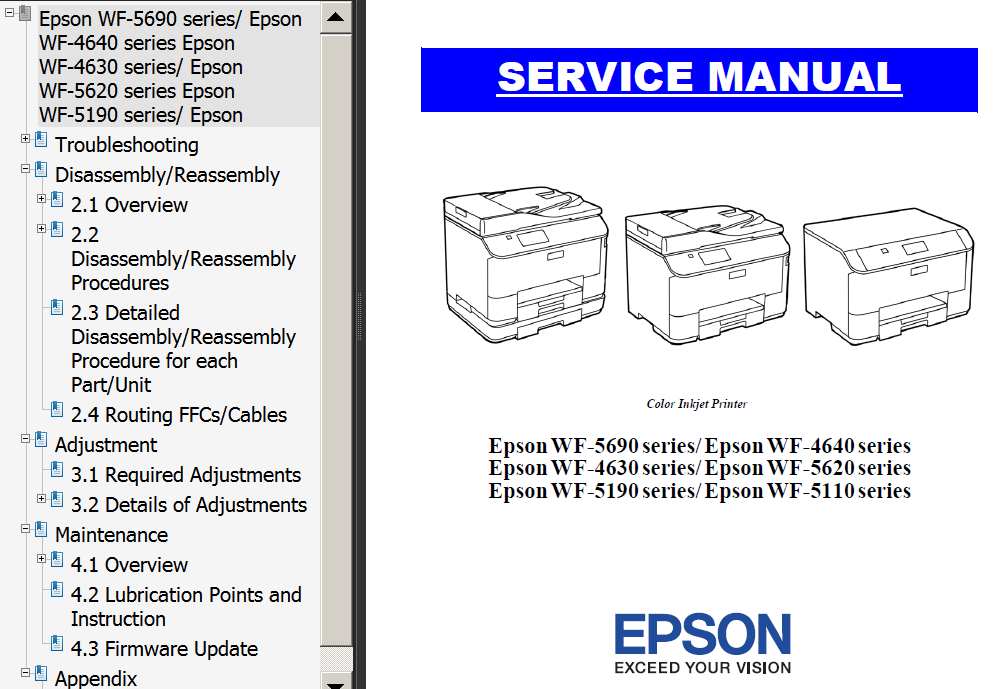

This Epson WF-4630 series, WF-4640 series, WF-5110 series, WF-5190 series, WF-5620 series, WF-5690 series, PXS840 Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.
CHAPTER 1. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.
CHAPTER 2. DISASSEMBLY / REASSEMBLY
Describes the disassembly/reassembly procedures for main parts/units of the product.
CHAPTER 3. ADJUSTMENT
Describes the required adjustments for servicing the product.
CHAPTER 6. MAINTENANCE
Describes maintenance items and procedures for servicing the product.
APPENDIX
Provides the following additional information for reference:
� Connecter Diagram
FORMAT: High resolution PDF document!
Zip archive: 30 490 kB
Order and download On-Line!
|
|
|
|
|
Step 1
ADD TO CART |
Step 2
CHECKOUT
Select payment method. |
Step 3
Confirm the order. |
|
|
