Epson SX130, NX130, T13, ME10 printers Service Manual New!

$9.99
Epson <b>SX130, NX130, T13, ME10</b>  printers Service Manual  <font color=red>New!</font>

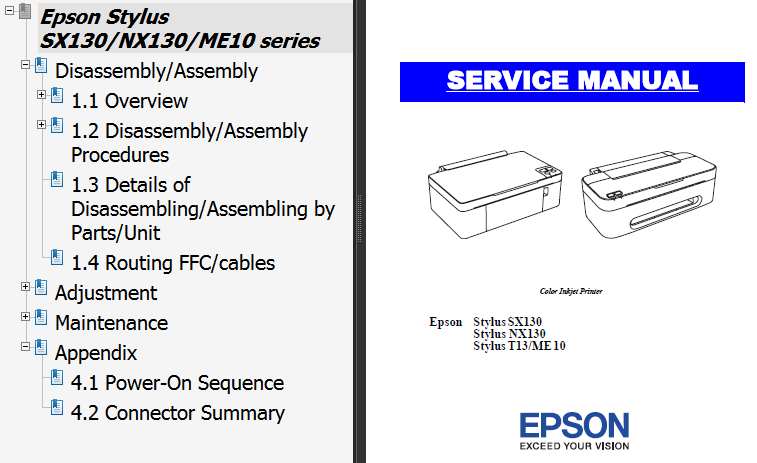

   Click to enlarge


This Epson T12, T13, T22, T25, TX120, TX121, TX123, TX125, TX129, N10, N11, NX125, NX127, ME10, ME32, ME33, ME320, ME330, S22, SX125 Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.


MANUAL CONTENT:

Chapter 1 Disassembly/Assembly
1.1 Overview
1.1.1 Tools
1.2 Disassembly/Assembly Procedures
1.2.1 Standard Operation Time for servicing the product (TBD)
1.2.2 Disassembling/Assembling Flowchart
1.2.2.1 Housing Part
1.2.2.2 Printer Mechanism Part
1.3 Details of Disassembling/Assembling by Parts/Unit
1.4 Routing FFC/cables

Chapter 2 Adjustment
2.1 Required Adjustments (TBD)
2.2 Details of Adjustments
2.2.1 TOP Margin Adjustment

Chapter 3 Maintenance
3.1 Overview
3.1.1 Cleaning
3.1.2 Lubrication
3.2 Lubrication Point

Chapter 4 Appendix
4.1 Power-On Sequence
4.2 Connector Summary

FORMAT: High resolution PDF document!
Zip archive: 13 444 kB

I want to:

Any questions about this product?

SEND US REQUEST by filling the form below.





Step 1
ADD TO CART
Step 2
CHECKOUT
Select payment method.
Step 3
Confirm the order.
