CANON iPF8000 Series, 8000S, 8100 Service Manual and Parts Catalog

$19.99

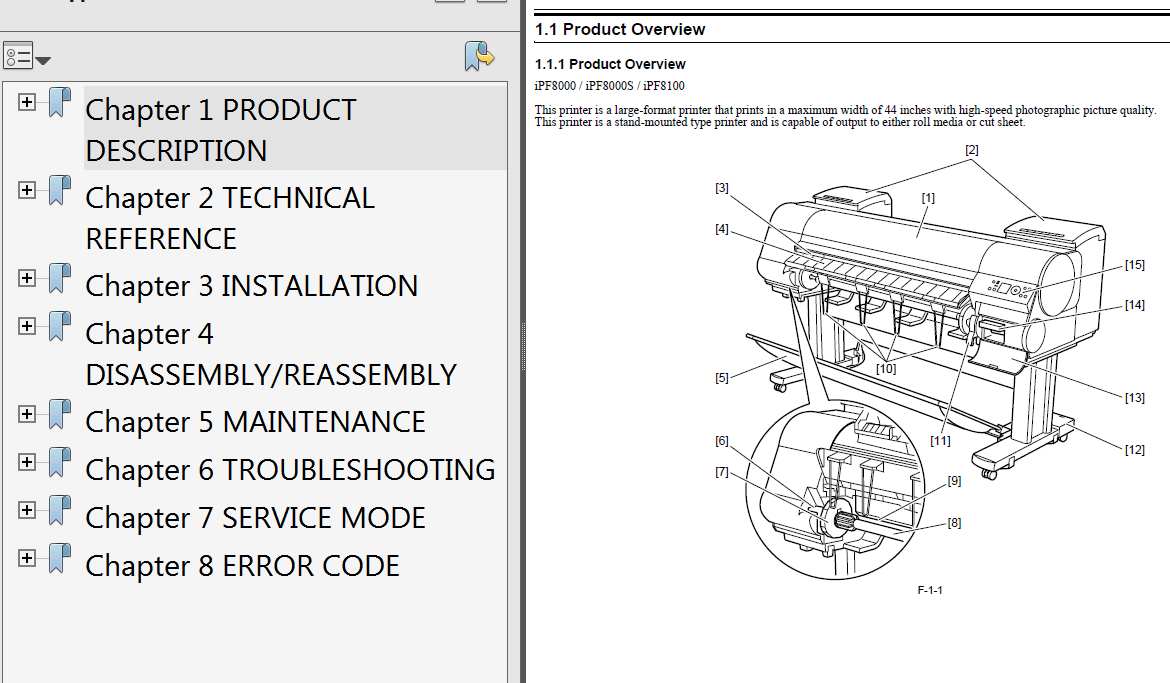

Click to enlarge

Canon iPF8000 Series, iPF8000s, iPF8100 Service Manual and Parts Catalog

This manual is divided into 8 parts containing the information required for servicing the iPF8000, iPF8000s, iPF8100 printers.

Chapter 1 PRODUCT DESCRIPTION

Chapter 2 TECHNICAL REFERENCE

Chapter 3 INSTALLATION

Chapter 4 DISASSEMBLY/REASSEMBLY

Chapter 5 MAINTENANCE
Regular Replacement Parts, Consumables, Regular Maintenance

Chapter 6 TROUBLESHOOTING

Chapter 7 SERVICE MODE
Service Mode Operation, Map of the Service Mode, Details of Service Mode, Printer Special Mode

Chapter 8 ERROR CODE
Outline, Warning Table, Error Table. Errors, Sevice Call Table, Service call error list

FORMAT: PDF document!
ZIP archive: 33 381 kB
