SC-P800 printers Service Manual and Connector Diagram New!

SC-P800 printers Service Manual and Connector Diagram New!	$19.99

Click to enlarge

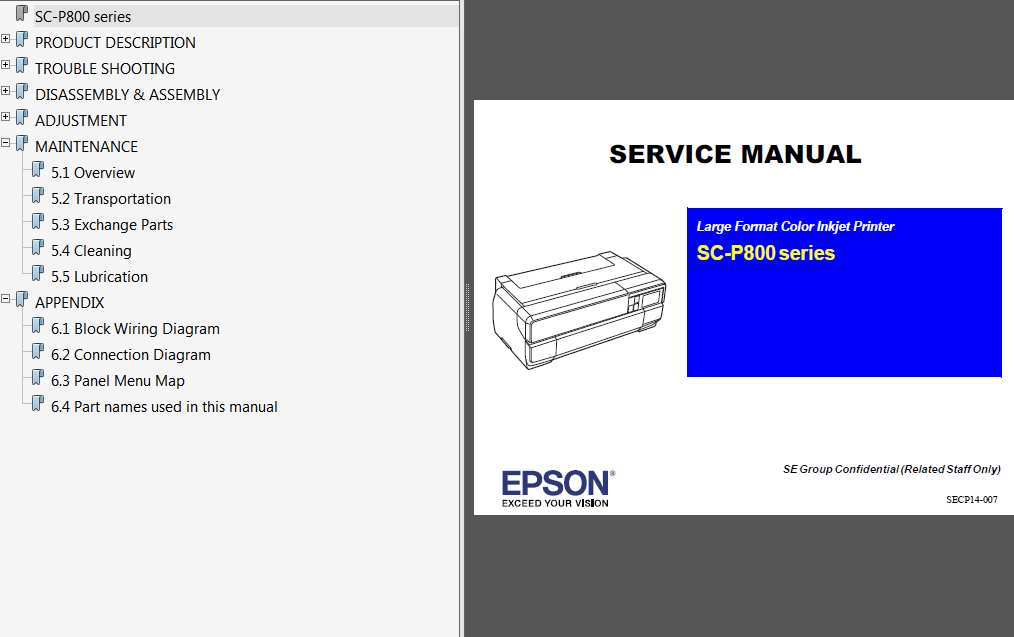

This Epson SC-P800 Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.

About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.

CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product.

CHAPTER 2. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.

CHAPTER 3. DISASSEMBLY / REASSEMBLY
Describes the disassembly/reassembly procedures for main parts/units of the product, and provides the standard operation time for servicing the product.

CHAPTER 4. ADJUSTMENT
Describes the required adjustments for servicing the product.

CHAPTER 5. MAINTENANCE
Describes maintenance items and procedures for servicing the product.

CHAPTER 6. APPENDIX
Provides the following additional information for reference:
• Connector diagram
• Panel Menu Maps
• Block Wiring Diagram
• Exploded Diagrams

FORMAT: High resolution PDF document!
Zip archive: 2 39 801 kB
Order and download On-Line!
