Canon TS6000 series, TS6100 series TS8000 series, TS8100 series TS9000 series, TS9100 series printers Service Manual

$29.99
Canon TS6000 series, TS6100 series TS8000 series, TS8100 series TS9000 series, TS9100 series printers Service Manual
   Click to enlarge

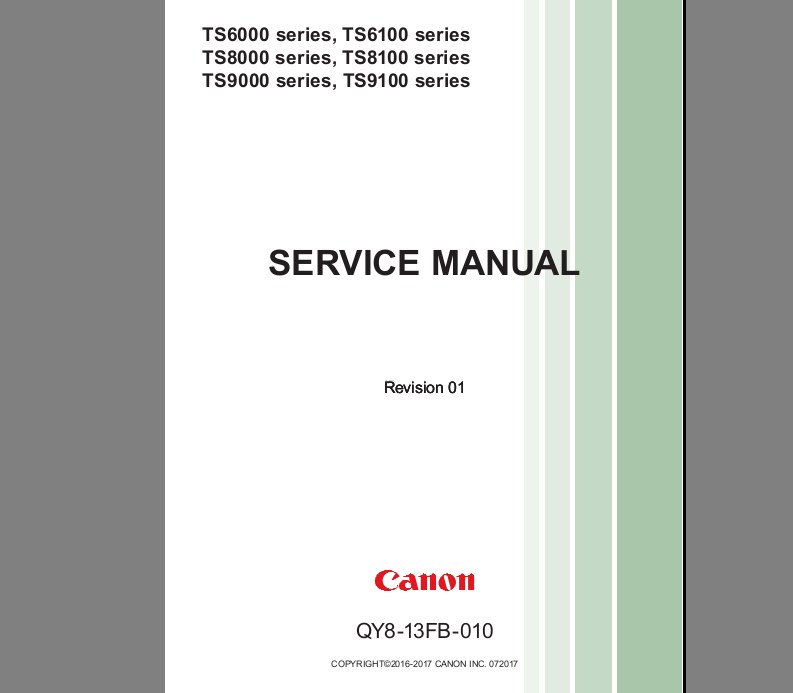

CANON TS6000 series, TS6100 series TS8000 series, TS8100 series TS9000 series, TS9100 series printers Service Manual

This manual provides technical information necessary for servicing the applicable product. Information on maintenance of the applicable product is given in the Simplified Service Manual. Please refer to them when necessary.

CONTENTS:

1. SPECIAL NOTES
- New Features
- Special Notes

2. TROUBLESHOOTING
- By Symptom
- By Printout Condition
- Error List
- By Error Code
- Lessons from the Past

3. MECHANISM
- Operation Principle
- Initial Flowchart
- Sensors and Block Diagrams

4.DISASSEMBLY & REASSEMBLY
- Notes on Repairing
- How to Use DISASSEMBLY & REASSEMBLY Sections
- Major Unit Disassembly Flow
- Disassembly Procedures
- Assembly Procedures

5. ADJUSTMENT & VERIFICATION AFTER REPAIR
- Adjustment
- Cleaning
- Verification after Repair

FORMAT: High resolution PDF document on 525 pages for Service Manual
