Epson Sure Lab SL-D700 printer Service Manual New!

$29.99
Epson <b>Sure Lab SL-D700 </b> printer Service Manual  <font color=red>New!</font>
   Click to enlarge

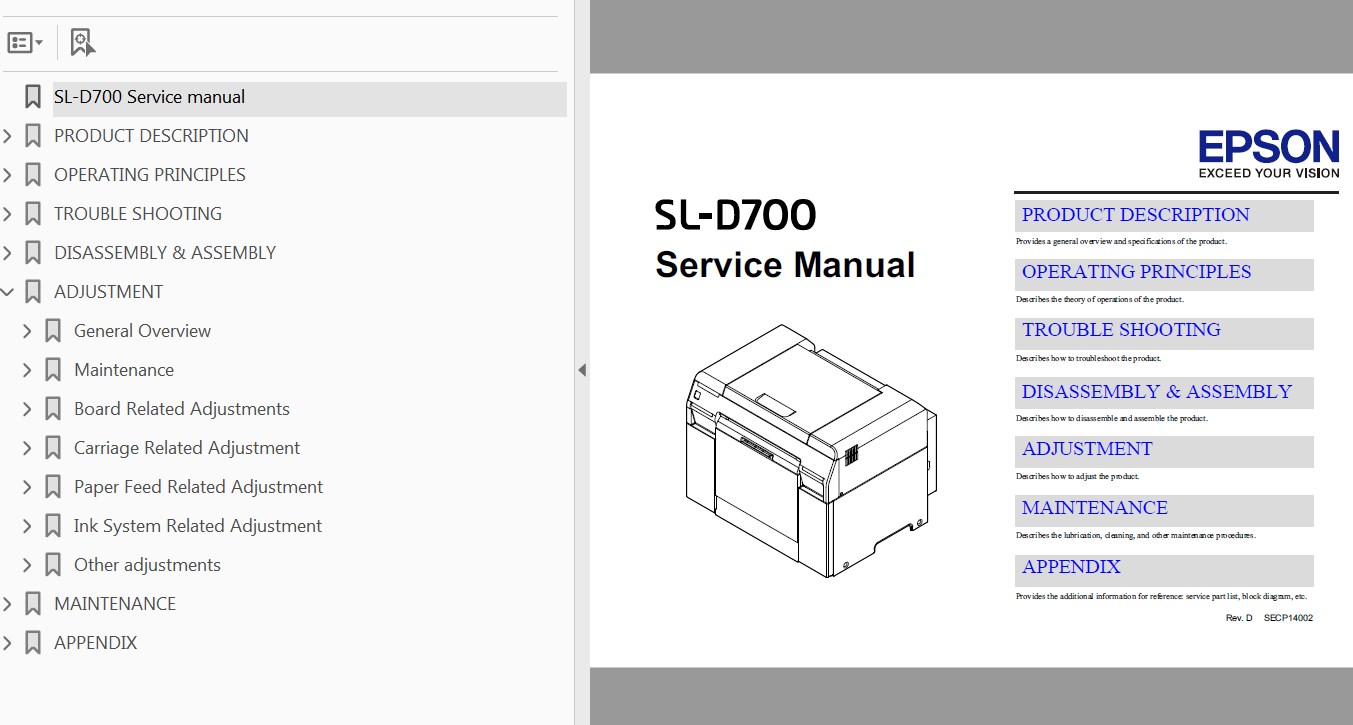

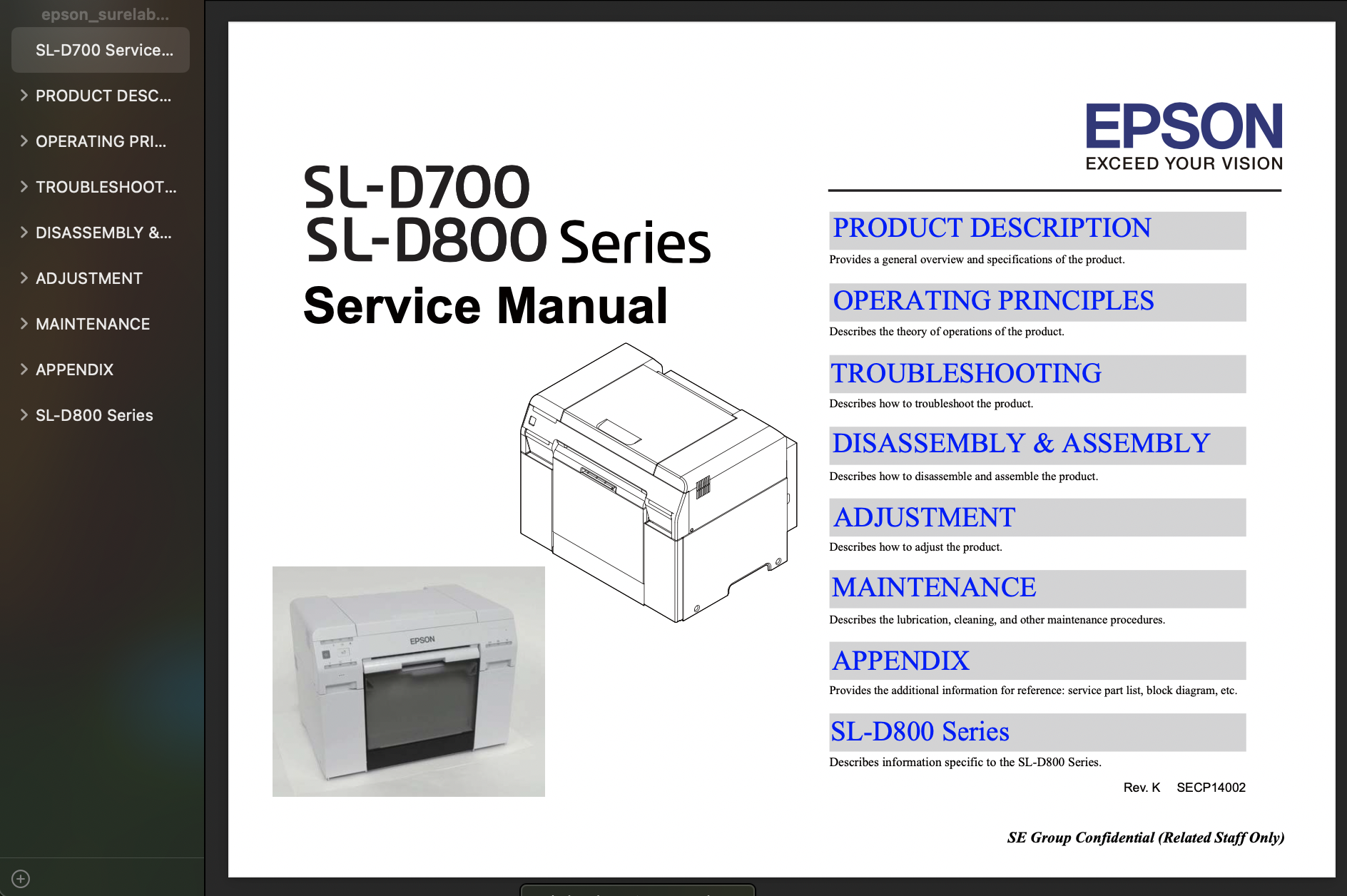

This Epson Sure Lab SL-D700 Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.



About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.

CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product

CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of mechanical operations of the product.

CHAPTER 3. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.

CHAPTER 4. DISASSEMBLY / REASSEMBLY
Describes the disassembly/reassembly procedures for main parts/units of the product.

CHAPTER 5. ADJUSTMENT
Describes the required adjustments for servicing the product

CHAPTER 6. MAINTENANCE
Describes maintenance items and procedures for servicing the product

APPENDIX
- Service Tool
- Connector Summary
- Board Layout Diagram
- Board Voltage List

FORMAT: High resolution PDF document!
Zip archive: 27 549 kB

You can download free first 9 pages of Epson SL-D700 Service Manual.
