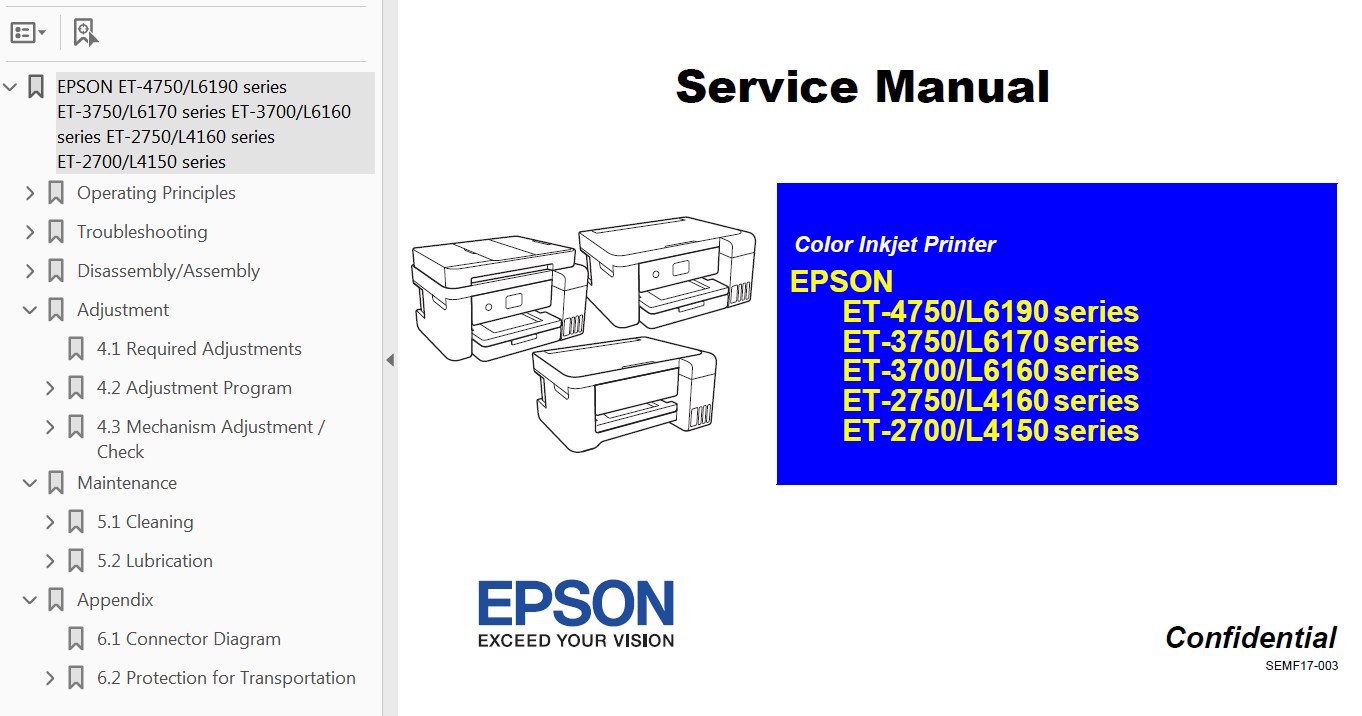

This Epson ET-2700, ET-2750, ET-3700, ET-3750, ET-4750, L4150, L4160, L6160, L6170, L6190 Series Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.
This manual, consists of the following chapters, is intended for repair service personnel and includes information
necessary for properly performing maintenance and servicing the product.
CHAPTER 1. OPERATING PRINCIPLES
CHAPTER 2. TROUBLESHOOTING
CHAPTER 3. DISASSEMBLY/ASSEMBLY
CHAPTER 4. ADJUSTMENT
CHAPTER 5. MAINTENANCE
APPENDIX
Provides the following additional information for reference:
- Connection Diagram
- Protection for Transportation
FORMAT: High resolution PDF document - 178 pages
Zip archive: 66 360 kB
You can download free first 30 pages of Epson ET-2700, ET-2750, ET-3700, ET-3750, ET-4750, L4150, L4160, L6160, L6170, L6190 Series Service Manual here.
