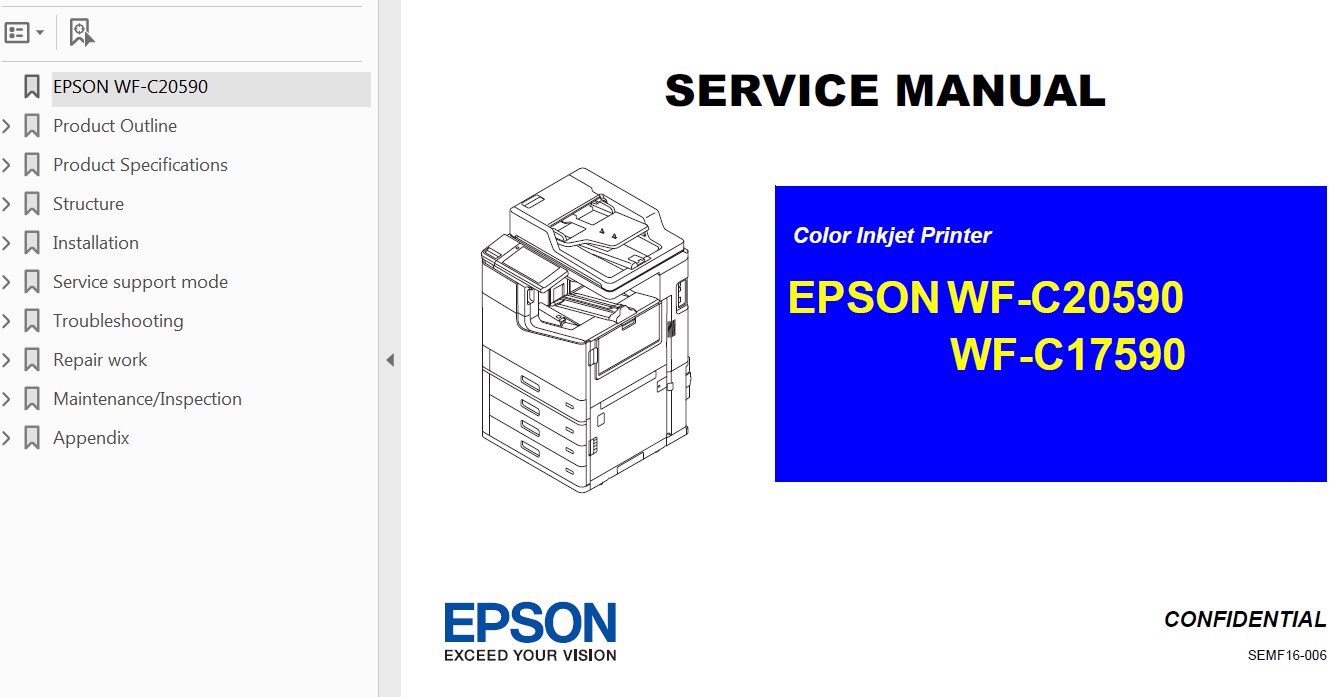

This Epson WF-C17590, WF-C20590 Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.
This manual, consists of the following chapters, is intended for repair service personnel and includes information
necessary for properly performing maintenance and servicing the product.
CHAPTER 1. PRODUCT OUTLINE
CHAPTER 2. PRODUCT SPECIFICATIONS
CHAPTER 3. STRUCTURE
CHAPTER 4. INSTALLATION
CHAPTER 5. SERVICE SUPPORT MODE
CHAPTER 6. TROUBLESHOOTING
CHAPTER 7. REPAIR WORK
CHAPTER 8. MAINTENANCE/INSPECTION
APPENDIX
Provides the following additional information for reference:
- Connection Diagram
- Part Names Conversion Table
- Status Sheet Information
- How to Analyze DIS(DTC)/DCS
- Hard Disk Drive (HDD) Specifications
- The Other Troubles
FORMAT: High resolution PDF document - 1301 pages!
Zip archive: 127 246 kB
You can download free first 12 pages of Epson WF-C17590, WF-C20590 Service Manual here.
