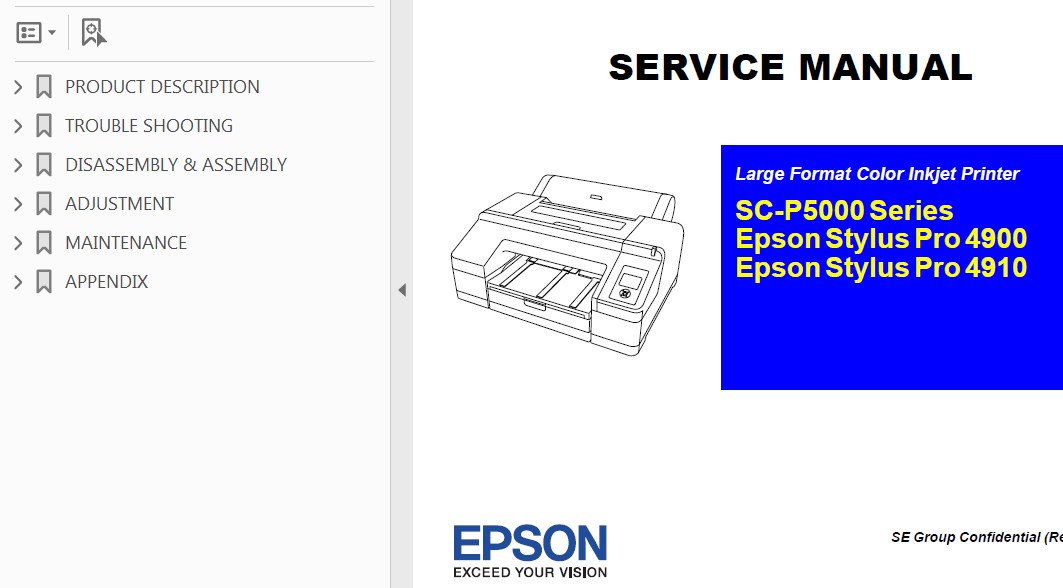

This Epson SC-P5000 Series, Pro 4900, Pro 4910 printers Service Manual, Exploded View, Parts List and Block Wiring Diagram. The service manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
This manual consists of six chapters and Appendix.
CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product.
CHAPTER 2. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.
CHAPTER 3. DISASSEMBLY / ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product.
CHAPTER 4. ADJUSTMENT
Provides Epson-approved methods for adjustment.
CHAPTER 5. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.
CHAPTER 6. APPENDIX
Provides the following additional information for reference:
� Block Wiring Diagram
� Connectors
� Panel Menu Maps
� Exploded View, Parts List and
For making printers Adjustment and Maintenance You can download
Epson SC-P5000 Adjustment Program
FORMAT: High resolution PDF document! 399 pages
Zip archive: 35 032 kB
|
