Epson Sure Color SC-T3100, SC-T3150, SC-T3170, N, X, D, Series, SC-T5100 Series, SC-F500 Service Manual and Block Wiring Diagram New!

$29.99
Epson Sure Color SC-T3100, SC-T3150, SC-T3170,  N, X, D, Series,  SC-T5100 Series,  SC-F500 Service Manual and Block Wiring Diagram <font color=red>New!</font>
   Click to enlarge

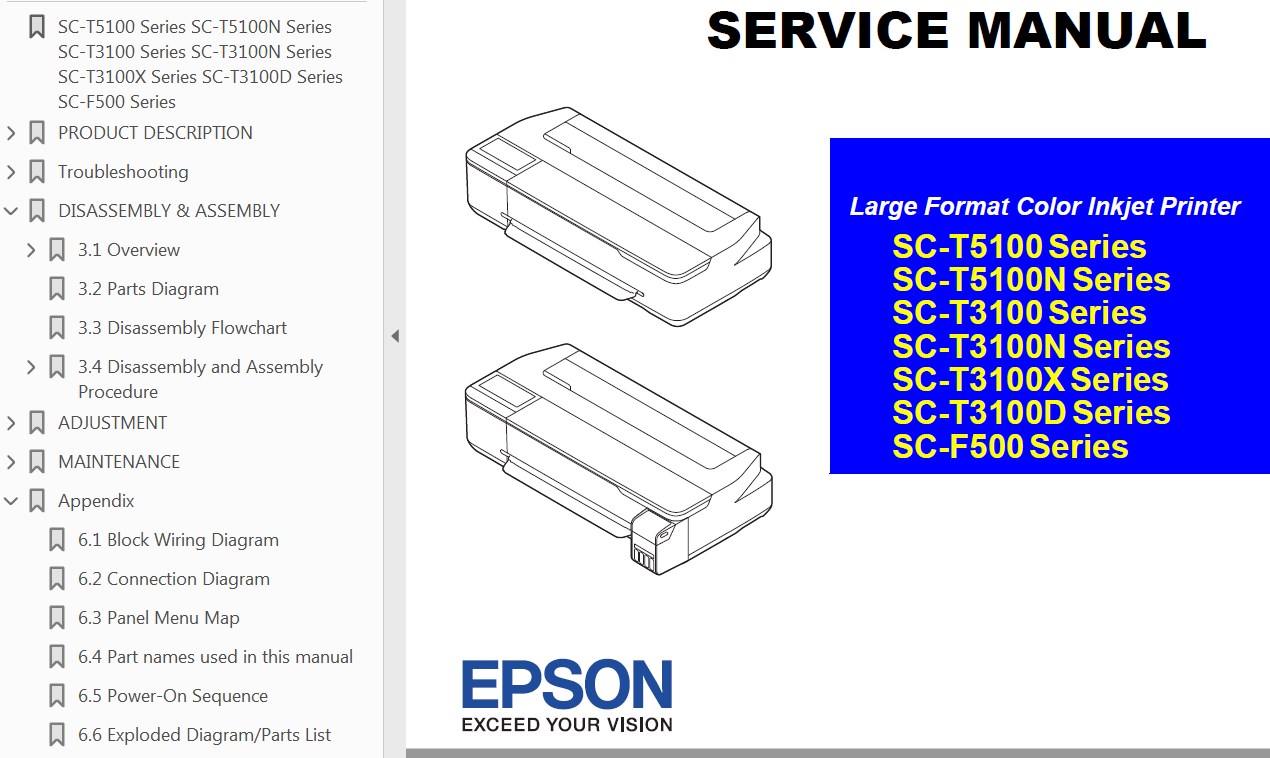

This Epson Sure Color SC-T3100, SC-T3150, SC-T3170, N, X, D, Series, SC-T5100 Series, SC-F500 Block Wiring Diagram and Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.

About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.

CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product

CHAPTER 2. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.

CHAPTER 3. DISASSEMBLY / ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product

CHAPTER 4. ADJUSTMENT
Provides Epson-approved methods for adjustment.

CHAPTER 5. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.

CHAPTER 6. APPENDIX
Provides the following additional information for reference:
- Block Wiring Diagram
- Connection Diagram
- Wiring Diagram
- Panel Menu Maps
- Part names used in this manual
- Power-On Sequence

FORMAT: High resolution PDF document!
Zip archive: 48 975 kB

If You want to make printer Adjustments or Mainteanance - You have to use SC-T3100, SC-T3400, SC-T3450, SC-T5100, SC-T5400, SC-T5450, SC-F500, SC-F600 series Adjustment Program - order here
