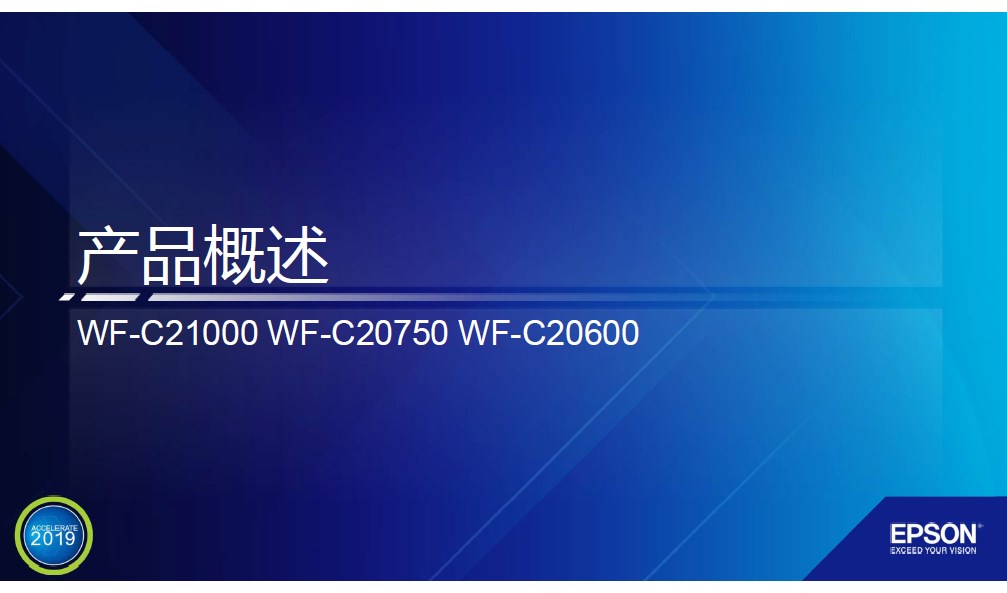

This Epson WF-C21000, WF-C20600, WF-C20750 Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.
This manual, consists of the following chapters, is intended for repair service personnel and includes information
necessary for properly performing maintenance and servicing the product.
- Service Support Mode（服务支持模式）
– Installation（安装）
– Special Codes（特殊代码）
– Service Support Mode Philosophy（服务支持模式原理）
– Troubleshooting（故障排除）
– Maintenance Mode（维护模式)
– Repair(维修）
– Disassembly /Reassembly difference with previous model（与前序机型拆装的差异）
– Options Adjustment（选件调整）
– Options Disassembly /reassembly（选件拆装）
– Maintenance of the options（选件维护）
– WFE2 spec and restrictions
FORMAT: High resolution PDF document - 191 pages!
Zip archive: 20 923 kB
You can download free first 12 pages of Epson WF-C21000, WF-C20600, WF-C20750 Service Manual here.
If You need to make printer adjustments and maintenance - You can download Adjustment Program for this models:
- WF-C21000, WF-C20600, WF-C20750 Series Adjustment Program - Download here
|
|
|
|
|
