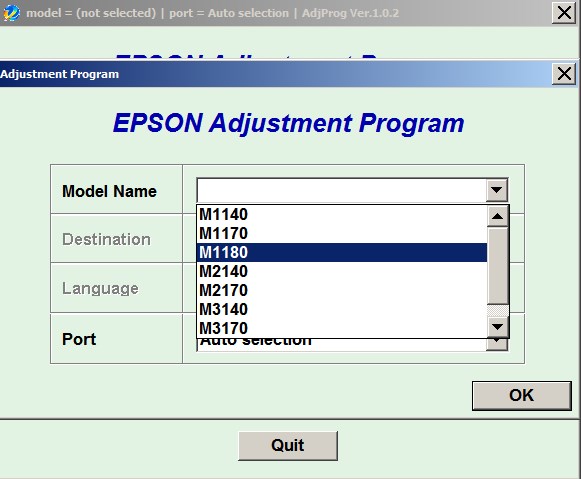

EpsonEcoTank M1100, M1140, M1170, M1180, M2100, M2140, M2170, M3140, M3170, M3180 ADJUSTMENT PROGRAM (EPIL) Ver.1.0.2

This adjustment program is developed for making printers adjustments and maintenance such as:

Adjustment
- EEPROM Data Copy
- Initial setting
- Initialize PF deterioration offset
- Initialize PW sensor deterioration counter
- Head ID input
- Photo sensor light level adjustment
- PTS delay adjustment
- PW adjustment
- First dot position adjustment
- Top margin Adjustment
- Head angular adjustment
- PF / EJ adjustment
- PF band adjustment
- Bi-D adjustment
- Paper skew adjustment
- CR motor heat protection control
- PF motor heat protection control

Maintenance
- Head cleaning
- Ink charge
- Waste ink pad counter
- Shipping setting

Appendix
- Final check pattern print
- EEPROM dump
- Printer information check
- Paper feed test

This adjustment program DOESN'T HAVE Main Waste Ink Counters Reset function.

The Epson Adjustment Program for New models Epson EcoTank M1100, M1140, M1170, M1180, M2100, M2140, M2170, M3140, M3170, M3180 can be used under Windows only (Millenium, 2000, XP, Vista [in compatibility mode]).

To get this adjustment program, for the Epson EcoTank M1100, M1140, M1170, M1180, M2100, M2140, M2170, M3140, M3170, M3180 you need to do the following:

1. Purchase the utility from 2manuals.com.
2. You'll get download link on-line and in the email message too

We recommend reading the Epson EcoTank M1100, M1140, M1170, M1180, M2100, M2140, M2170, M3140, M3170, M3180 Service Manual before using the adjustment utility.

This printer models have separate Waste Ink Maintenance Box with its own IC chip. You can replace Waste Ink Maintenance Box or reset the chip on the Waste Ink Maintenance Box. Read more about how to reset the Waste Ink Maintenance Box.

Please contact us if you have not received your order.
