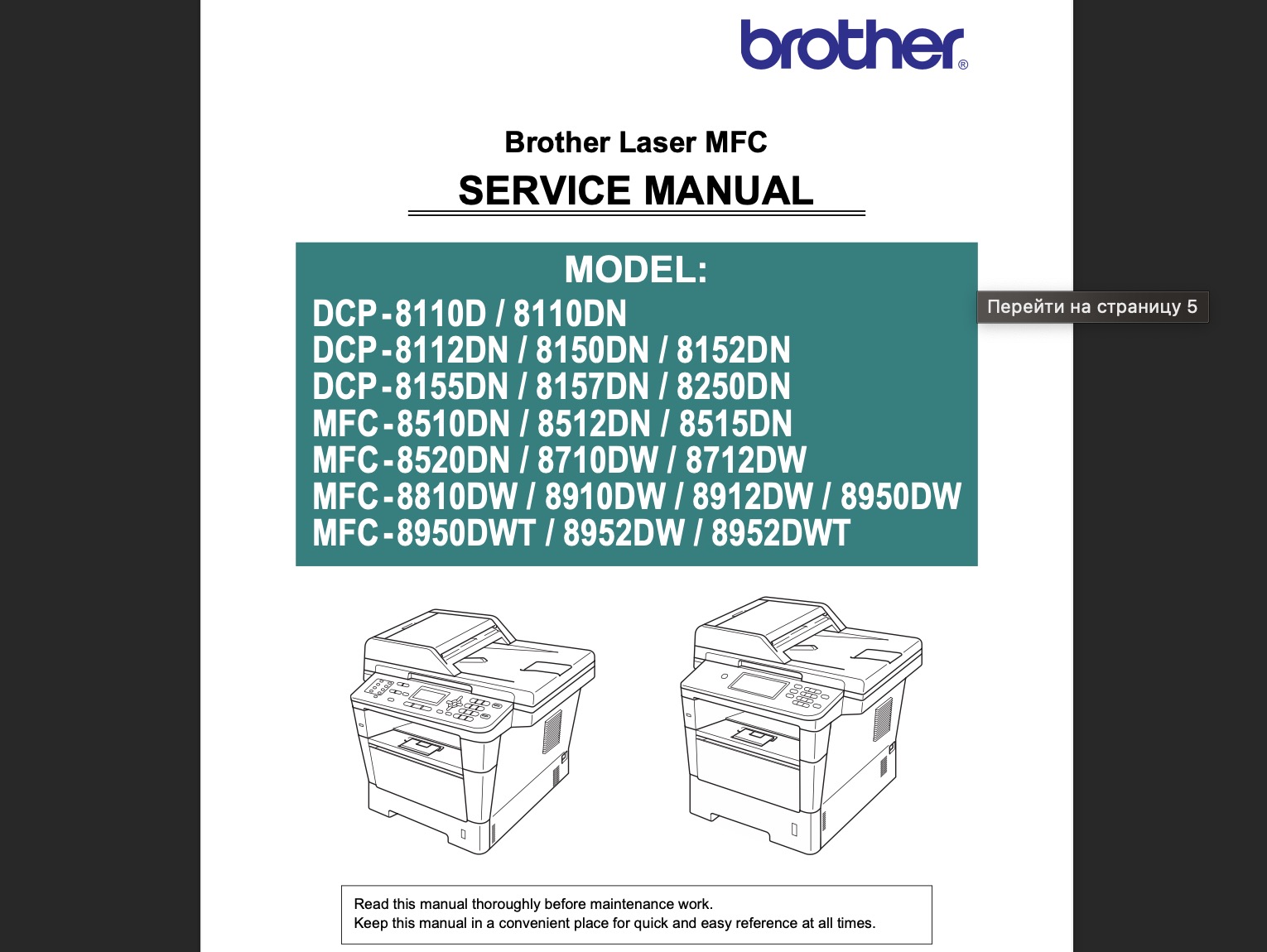

Brother DCP-8110D / 8110DN / 8112DN / 8150DN / 8152DN / 8155DN / 8157DN / 8250DN and MFC-8510DN / 8512dN / 8515DN / 8520DN / 8710DW / 8712DW / 8810DW / 8910DW / 8912DW / 8950DW / 8950ВDWT / 8952DW / 8952DWT Service Manual
This publication is a Service Manual covering the specifications, construction, theory of operation, and maintenance of the Brother facsimile equipment. It includes information required for field troubleshooting and repair, disassembly, reassembly, and adjustment so that service personnel will be able to understand equipment function, to rapidly repair the equipment and order any necessary spare parts.
To perform appropriate maintenance so that the facsimile equipment is always in best condition for the customer, the service personnel must adequately understand and apply this manual.
This manual is made up of six chapters and appendices:
CHAPTER I. SPECIFICATION
CHAPTER II. TROUBLESHOOTING
CHAPTER III. DISASSEMBLY/REASSEMBLY
CHAPTER IV. ADJUSTING AND UPDATING SETTINGS AS REQUIRED AFTER PARTS REPLACEMENT
CHAPTER V. SERVICE FUNCTIONS
CHAPTER VI. WIRING DIAGRAM
CHAPTER VII. PERIODICAL MAINTENANCE
APPENDIX 1 SERIAL NUMBERING SYSTEM
APPENDIX 2 DELETING USER SETTING INFORMATION
APPENDIX 3 INSTALLING MAINTENANCE DRIVER
FORMAT: High resolution PDF document! 373 pages
ZIP archive: 17 980 kB
|
