CANON i70 printer
Service Manual and Parts Catalog

$8.99
CANON i70 printer<br> Service Manual  and Parts Catalog
   Click to enlarge

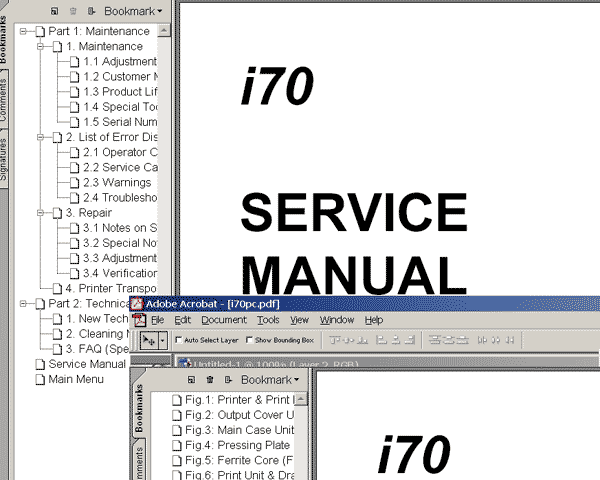

i70 Inkjet Printer Service Manual and Parts Catalog

This manual consists of the following three parts to provide information necessary to service the i70:

Part 1: Maintenance
Information on maintenance and troubleshooting of the i70

Part 2: Technical Reference
New technology and technical information such as FAQ’s (Frequently Asked Questions) of the i70

Part 3: Appendix
Block diagrams and pin layouts of the i70

Reference:
This manual does not provide sufficient information of d isassembly and reassembly procedures.
Refer to the graphics in the Parts Catalog.

FORMAT: High resolution PDF document!
ZIP archive: 4 490 kB
