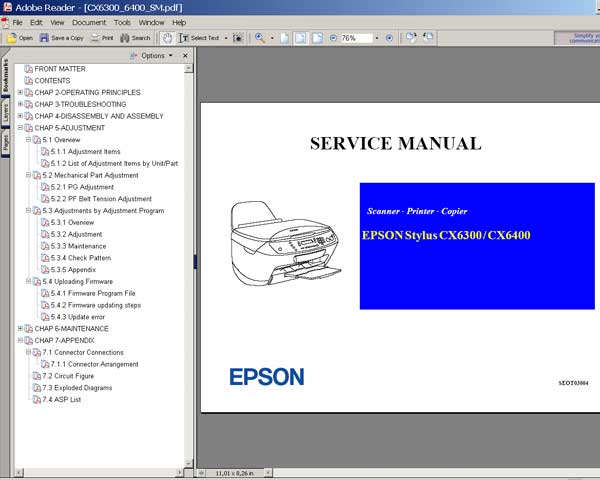

This Epson Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.

This manual consists of 6 chapters and Appendix.

CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product.

CHAPTER 2. OPERATION PRINCIPLES
Describes the theory of electrical and mechanical operations of the product.

CHAPTER 3. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.

CHAPTER 4. DISASSEMBLY / ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product.

CHAPTER 5. ADJUSTMENT
Provides Epson-approved methods for adjustment.

CHAPTER 6. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.

APPENDIX Provides the following additional information for reference:
• Electrical circuit boards schematics

FORMAT: High resolution PDF document!
Zip archive: 17 300 kB
