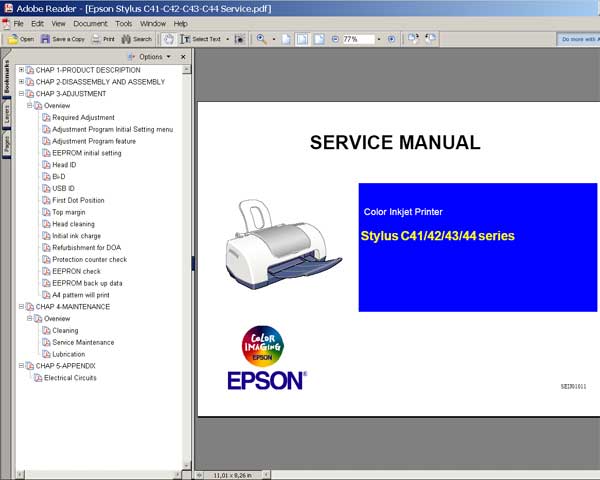

This Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.
This manual consists of 4 chapters and Appendix.
CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product.
CHAPTER 2. DISASSEMBLY / ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product.
CHAPTER 3. ADJUSTMENT
Provides Epson-approved methods for adjustment.
CHAPTER 4. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.
APPENDIX Provides the following additional information for reference:
• Electrical circuit boards schematics
• Exploded diagram and Parts List
FORMAT: High resolution PDF document!
Zip archive: 4 441 kB
|
