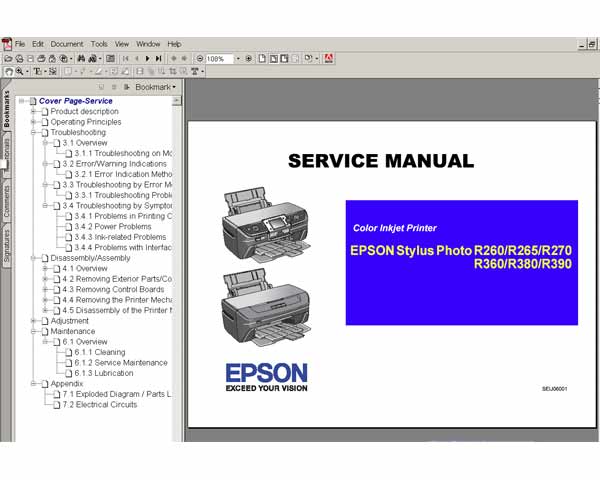

Click to enlarge

This Epson R260, R265, R270, R360, R380, R390, PMG850, PMD8700 Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.

This manual consists of 6 chapters and Appendix.

CHAPTER 1. PRODUCT DESCRIPTION
CHAPTER 2. OPERATING PRINCIPLES
CHAPTER 3. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.

CHAPTER 4. DISASSEMBLY / ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product.

CHAPTER 5. ADJUSTMENT
Provides Epson-approved methods for adjustment.

CHAPTER 6. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.

APPENDIX Provides the following additional information for reference:
� Electric circuits
� Exploded diagram

FORMAT: High resolution PDF document!
