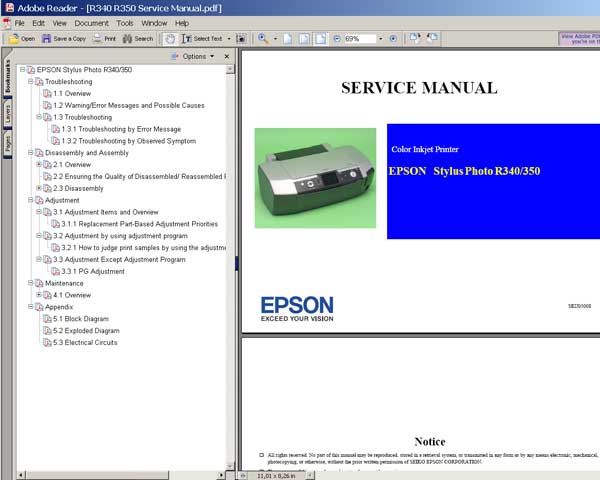

Epson R340, R350, PMD800 Service Manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer.

This manual consists of 4 chapters and Appendix.

CHAPTER 1. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.

CHAPTER 2. DISASSEMBLY / ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product.

CHAPTER 3. ADJUSTMENT
Provides Epson-approved methods for adjustment.

CHAPTER 4. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and adhesives required for servicing the product.

APPENDIX Provides the following additional information for reference:
• Electric circuits
• Exploded diagram

FORMAT: High resolution PDF document!

Zip archive: PdF document 8 510 kB
